Pb Pr WAVEFORMS
BETACAM LEVE
L
0mV
+171mV
+334mV
+505mV
0mV
–171mV
–334mV
–05mV
WHITE
YELLOW
CYAN
GREEN
MAGENT
A
RED
BLUE
BLACK
02980-A-072

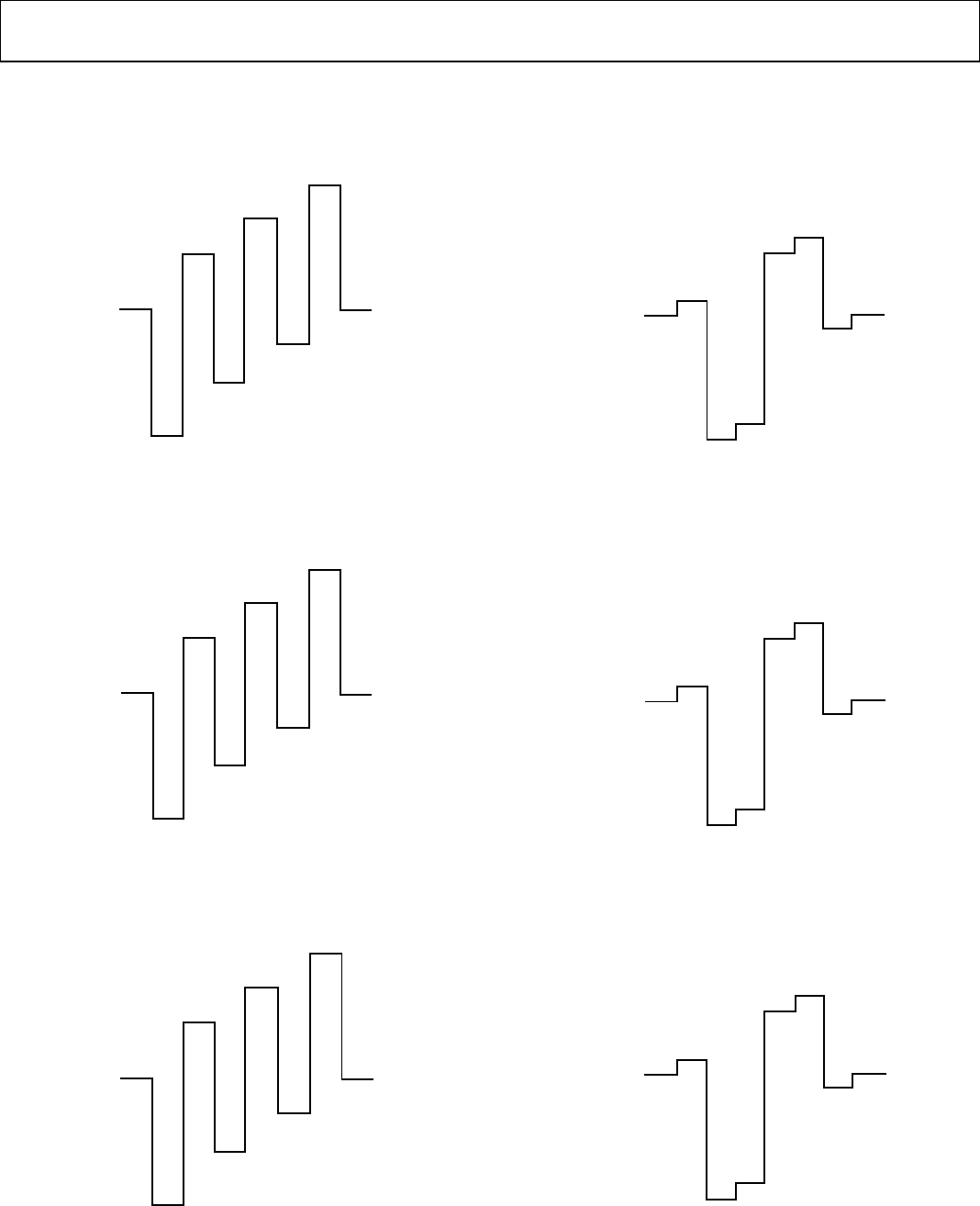

Figure 73. NTSC 100% Color Bars, No Pedestal Pb Levels
BETACAM LEVEL
0mV
+158mV
+309mV
+467mV
0mV
–158mV
–309mV
–467mV
WHITE
YELLOW
CYAN
GREEN
MAGENT
A
RED
BLUE
BLACK
02980-A-073
Figure 74. NTSC 100% Color Bars with Pedestal Pb Levels
SMPTE LEVEL
0mV
+118mV
+232mV
+350mV
0mV
–118mV
–232mV
–350mV
WHITE
YELLOW
CYAN
GREEN
MAGENTA
RED
BLUE
BLACK
02980-A-074
Figure 75. PAL 100% Color Bars, Pb Levels
BETACAM LEVEL
0mV
+82mV
+423mV
+505mV
0mV
–82mV
–505mV
–423mV
WHITE
YELLOW
CYAN
GREEN
MAGENT
A
RED
BLUE
BLACK
02980-A-075
Figure 76. NTSC 100% Color Bars, No Pedestal Pr Levels
BETACAM LEVEL
0mV
+76mV
+391mV
+467mV
0mV
–76mV
–467mV
–391mV
WHITE
YELLOW
CYAN
GREEN
MAGENT
A
RED
BLUE
BLACK
02980-A-076
Figure 77. NTSC 100% Color Bars with Pedestal Pr Levels
S
MPTE LEVEL
0mV
+57mV
+293mV
+350mV
0mV
–57mV
–350mV
–293mV
WHITE
YELLOW
CYAN
GREEN
MAGENT
A
RED
BLUE
BLACK
02980-A-077
Figure 78. PAL 100% Color Bars, Pr Levels
