Mode 1: Slave Option
HSYNC
,
BLANK
, FIELD
(Timing Register 0 TR0 = X X X X X 0 1 0)
In this mode, the ADV7174/ADV7179 accepts horizontal
SYNC and odd/even FIELD signals. A transition of the FIELD
input when
HSYNC
is low indicates a new frame, i.e., vertical
retrace. The
BLANK
signal is optional. When the
BLANK
input
is disabled, the ADV7174/ADV7179 automatically blanks all
normally blank lines as per CCIR-624. Mode 1 is illustrated in
(NTSC) and (PAL).Figure 24 Figure 25
260 261 262 263 264 265 266 267 268 269 270 271 272 273 274
283
284
285
ODD FIELD EVEN FIELD
DISPLAY
DISPLAY
HSYNC
BLANK
FIELD
522 523 524 525
1234
5
678
9
10 11
20 21 22
DISPLAY
DISPLAY
ODD FIELD
EVEN FIELD
HSYNC
BLANK
FIELD
VERTICAL BLANK
VERTICAL BLANK
02980-A-024

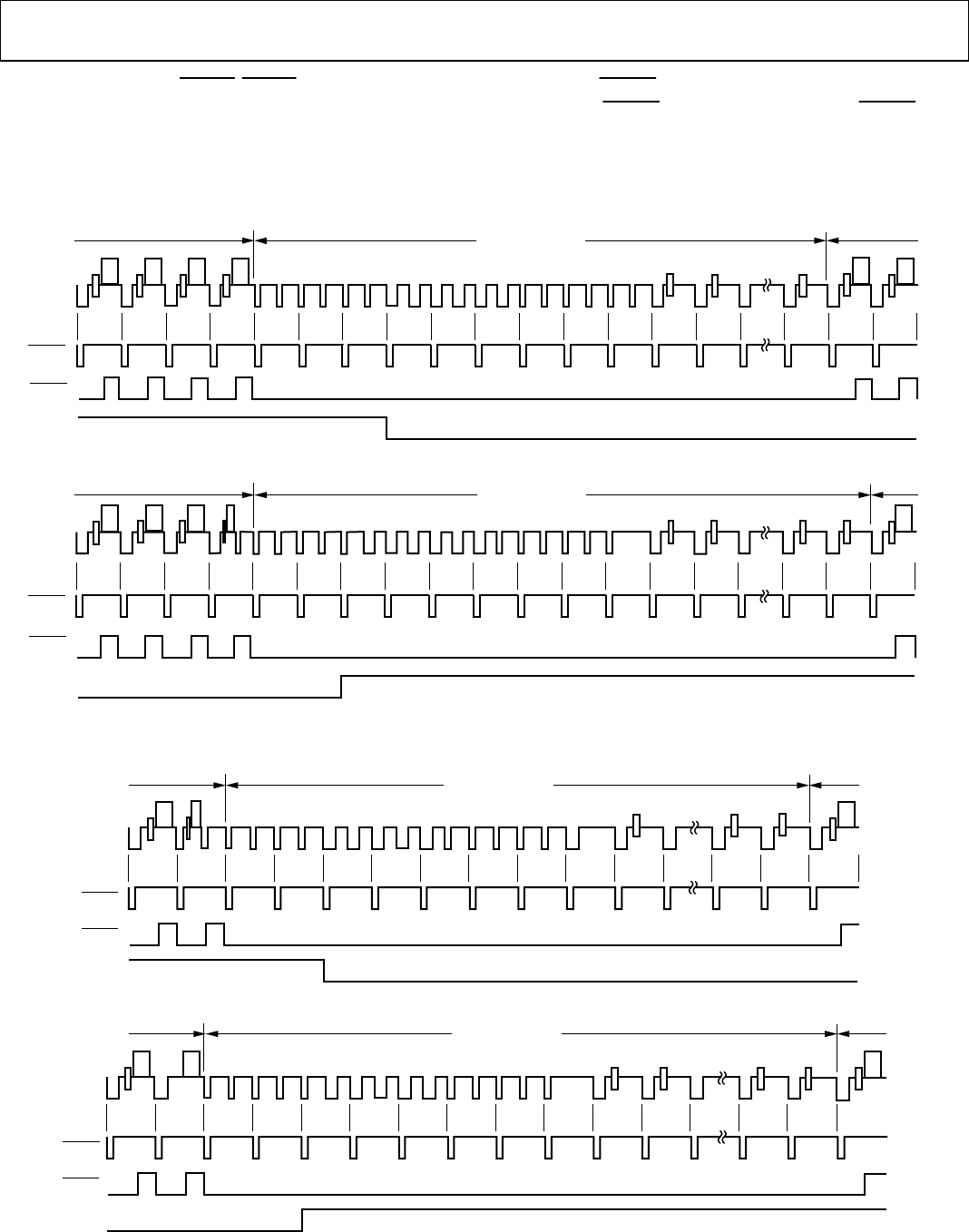

Figure 24. Timing Mode 1 (NTSC)
622 623 624 625 1 2 3 4
5
67
21 22 23
DISPLAY
ODD FIELD
EVEN FIELD
HSYNC
BLANK
FIELD
DISPLAY
309 310 311 312 313 314 315 316
317
318 319
334 335 336
DISPLAY
ODD FIELD
EVEN FIELD
HSYNC
BLANK
FIELD
DISPLAY
320
VERTICAL BLANK
VERTICAL BLANK
02980-A-025
Figure 25. Timing Mode 1 (PAL)
