Version C
Clinician Instructions for Use – Device and Mobile Application
C
PART 2. IN-CLINIC INSTRUCTIONS FOR
USE
5.
GETTING STARTED
The ADI CPM System packaging contains:
1.
CPM Device (packaged in the Base Station)
2.
CPM Base Station
3.
CPM Device alignment tool strap
4.
CPM Device alignment tool housing
attachment mechanism
5.
Charging cable and wall adaptor
6.
Locking snaps for CPM device (2)
7.
Base Station adjustment plates (5)
8.
Box of 15 adhesive disposables
9.
Patient User Manual

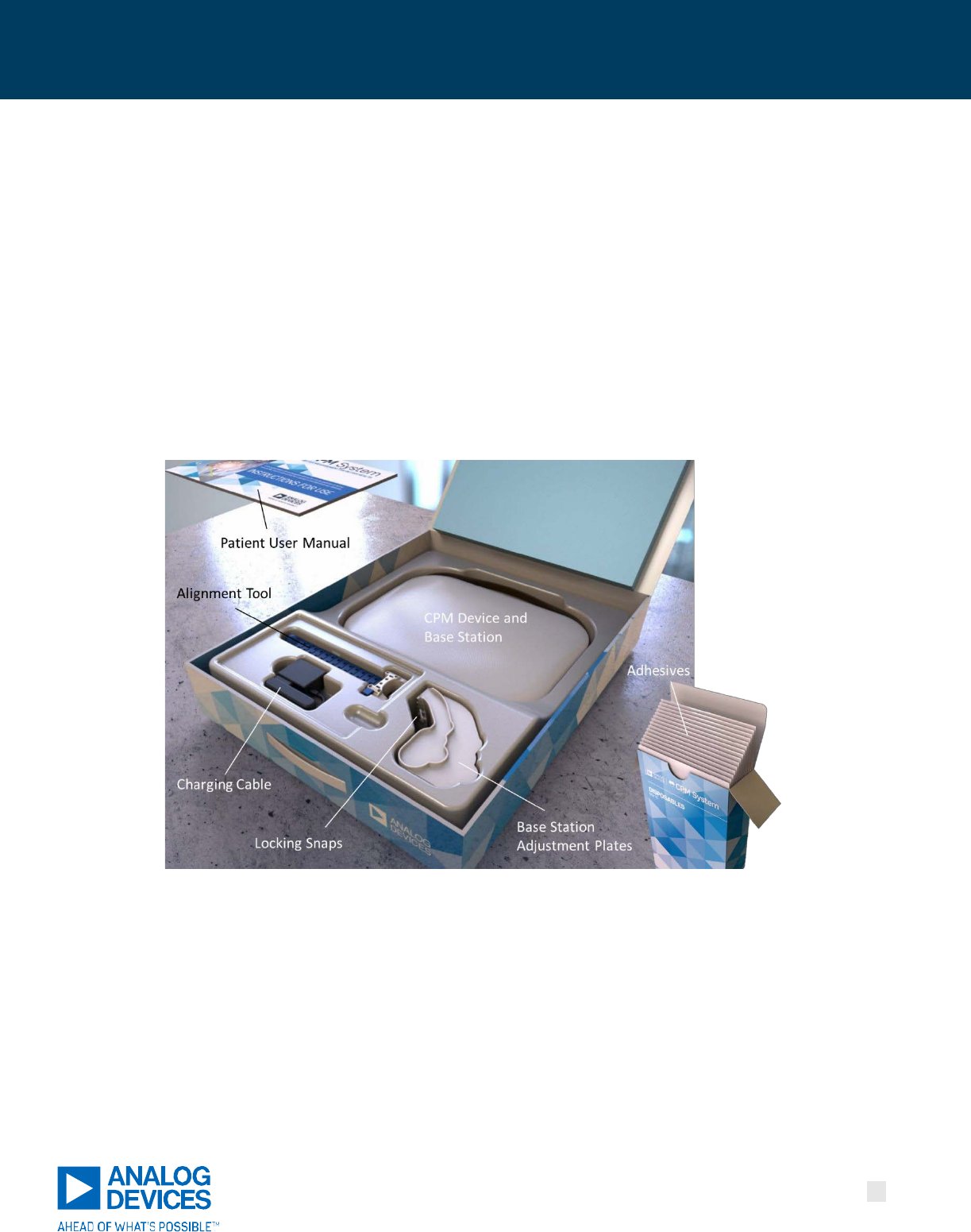

Figure 12. CPM System main packaging with included components labeled.
6.
BASELINE MEASUREMENT PREPARATION AND DEVICE SETUP
6.1 Before meeting your patient for the baseline reading
1)
Ensure that you have login credentials for the mobile app.
2)
Ensure that the mobile app is installed on the phone and that the phone is sufficiently charged. The CPM
mobile application is compatible with Android operating systems.
3)
Charge the CPM Device using the Base Station.
