PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
03751-003
AD9949
TOP VIEW
1 D1
D8
D7
D6
D5
DRVDD
DRVSS
D4
D3
D2
2
3
4
5
6
7
8
9
10
RGVSS
H4 H3
HVDD
HVSS
H2 H1
(MSB) D11
D10
D9
11
12 13 14 15 16 17 18 19 20
30 REFB
RG
RGVDD
TCVSS
TCVDD
CLI
AVDD
CCDIN
AVSS
REFT
29
28
27
26
25
24
23
22
21
40 39 38 37 36 35 34 33 32 31
SL D0 (LSB) CLP/PBLK HBLK DVDD DVSS HD VD SCK SDI
PIN 1
INDICATOR

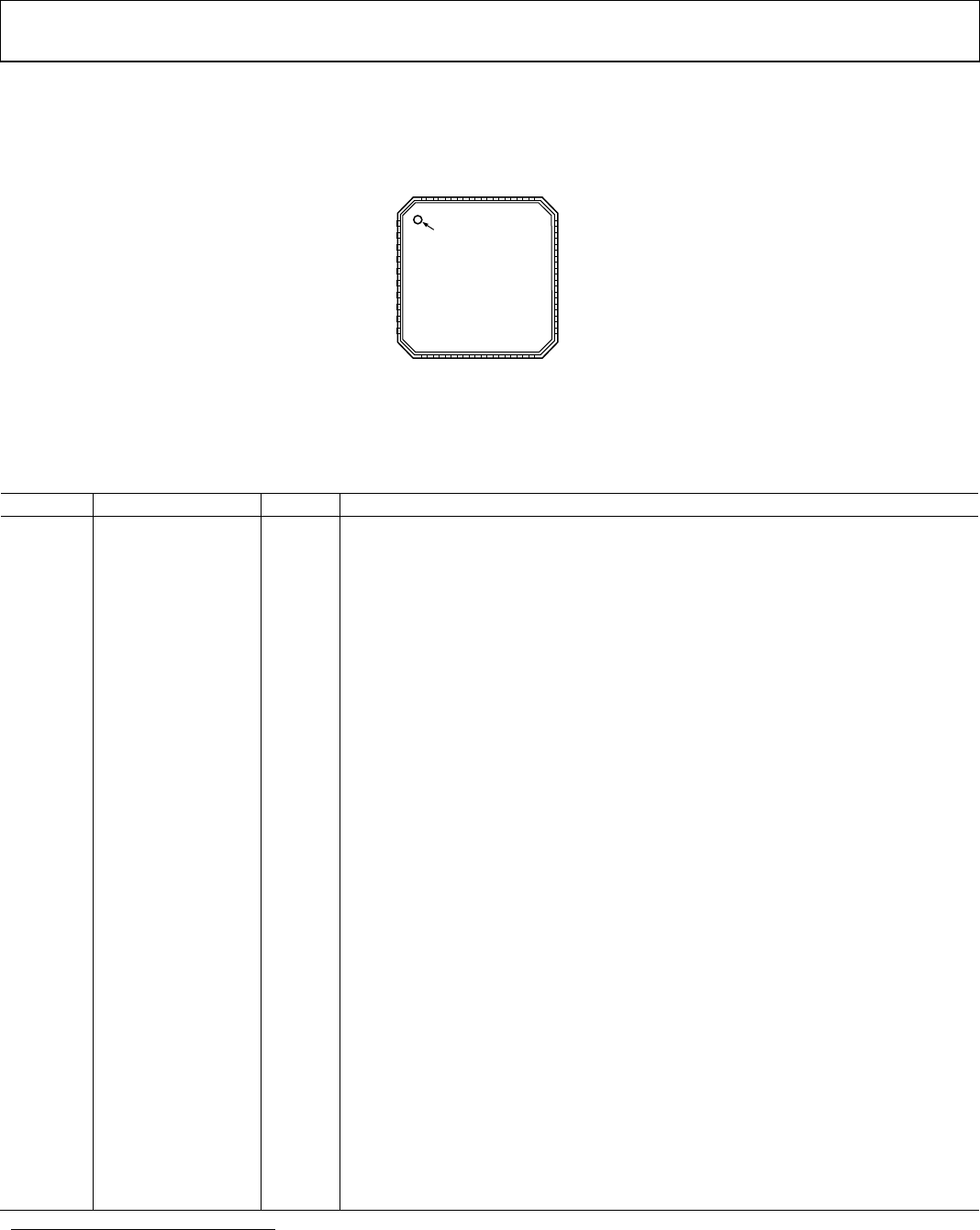

Figure 2. Pin Configuration
Table 6. Pin Function Descriptions
Pin No. Mnemonic Type
1
Description
1 to 4 D1 to D4 DO Data Outputs
5 DRVSS P Digital Driver Ground
6 DRVDD P Digital Driver Supply
7 to 13 D5 to D11 DO Data Outputs (D11 is MSB)
14 H1 DO CCD Horizontal Clock 1
15 H2 DO CCD Horizontal Clock 2
16 HVSS P H1 to H4 Driver Ground
17 HVDD P H1 to H4 Driver Supply
18 H3 DO CCD Horizontal Clock 3
19 H4 DO CCD Horizontal Clock 4
20 RGVSS P RG Driver Ground
21 RG DO CCD Reset Gate Clock
22 RGVDD P RG Driver Supply
23 TCVSS P Analog Ground for Timing Core
24 TCVDD P Analog Supply for Timing Core
25 CLI DI Master Clock Input
26 AVDD P Analog Supply for AFE
27 CCDIN AI Analog Input for CCD Signal (Connect through Series 0.1 µF Capacitor)
28 AVSS P Analog Ground for AFE
29 REFT AO Reference Top Decoupling (Decouple with 1.0 µF to AVSS)
30 REFB AO Reference Bottom Decoupling (Decouple with 1.0 µF to AVSS)
31 SL DI 3-Wire Serial Load
32 SDI DI 3-Wire Serial Data Input
33 SCK DI 3-Wire Serial Clock
34 VD DI Vertical Sync Pulse
35 HD DI Horizontal Sync Pulse
36 DVSS P Digital Ground
37 DVDD P Digital Supply
38 HBLK DI Optional HBLK Input
39 CLP/PBLK DO CLPOB or PBLK Output
40 D0 DO Data Output LSB
1
Type: AI = Analog Input, AO = Analog Output, DI = Digital Input, DO = Digital Output, P = Power.
