AD9949
Rev. B | Page 22 of 36
HD
HBLK
THE POLARITY OF H1 DURING BLANKING IS PROGRAMMABLE (H2 IS OPPOSITE POLARITY OF H1).
H1/H3
H1/H3
H2/H4
...
...
...
...
03751-024

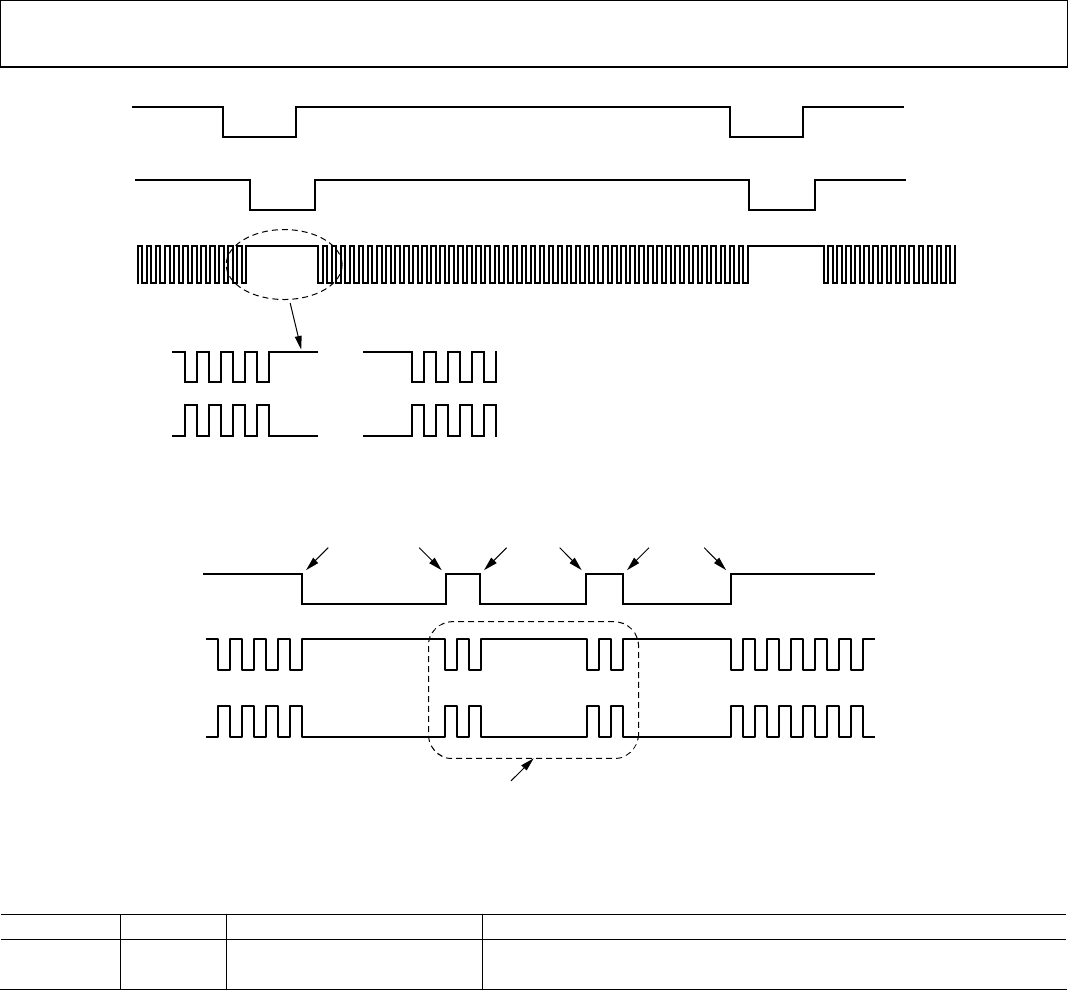

Figure 23. HBLK Masking Control
HBLK
SPECIAL H-BLANK PATTERN IS CREATED USING MULTIPLE HBLK TOGGLE POSITIONS.
H1/H3
H2/H4
TOG1
TOG2
TOG3
TOG4
TOG5
TOG6
03751-025
Figure 24. Generating Special HBLK Patterns
Table 20. Horizontal Sequence Control Parameters for CLPOB, PBLK, and HBLK
Register Length Range Description
SCP 12b 0 to 4095 Line Number CLOB/PBLK/HBLK SCP to Define Horizontal Regions 0 to 3.
SPTR 2b 0 to 3 Sequence Number Sequence Pointer for Horizontal Regions 0 to 3.
