AD5247 Data Sheet
Rev. F | Page 18 of 20
OUTLINE DIMENSIONS
1.30 BSC
COMPLIANT TO JEDEC STANDARDS MO-203-AB
1.00
0.90
0.70
0.46
0.36
0.26
2.20
2.00
1.80
2.40
2.10
1.80
1.35
1.25
1.15
072809-A
0.10 MAX
1.10
0.80
0.40
0.10
0.22
0.08
312
46
5
0.65 BSC
COPLANARITY
0.10
SEATING
PLANE
0.30
0.15

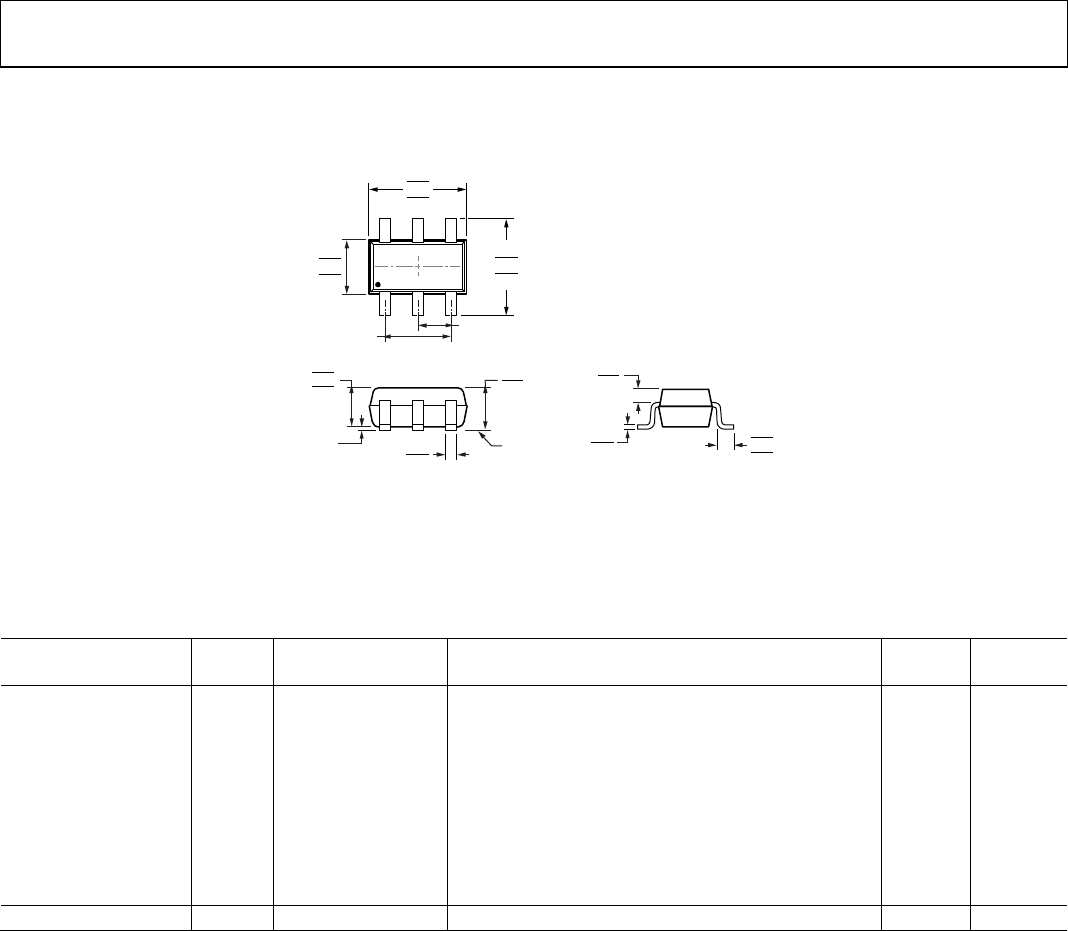

Figure 42. 6-Lead Thin Shrink Small Outline Transistor Package [SC70]
(KS-6)
Dimensions shown in millimeters
ORDERING GUIDE
Model
1
R
AB
(kΩ) Temperature Range Package Description
2
Package
Option Branding
AD5247BKSZ5-RL7 5 –40°C to +125°C 6-lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 D96
AD5247BKSZ10-RL7 10 –40°C to +125°C 6-lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 D95
AD5247BKSZ10-1RL7 10 –40°C to +125°C 6-lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 D5E
AD5247BKSZ10-2RL7 10 –40°C to +125°C 6-lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 DAK
AD5247BKSZ50-RL7 50 –40°C to +125°C 6-lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 D97
AD5247BKSZ100-R2 100 –40°C to +125°C 6-lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 D98
AD5247BKSZ100-RL7 100 –40°C to +125°C 6-lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 D98
AD5247BKSZ100-1RL7 100 –40°C to +125°C 6-lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 DAJ
AD5247BKSZ100-2RL7 100 –40°C to +125°C 6-lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 DAL
EVAL-AD5247DBZ Evaluation Board
1
Z = RoHS compliant part.
2
The evaluation board is shipped with the 10 kΩ R
AB
resistor option; however, the board is compatible with all available resistor value options.
