Rosemount 5300 Series
October 2014

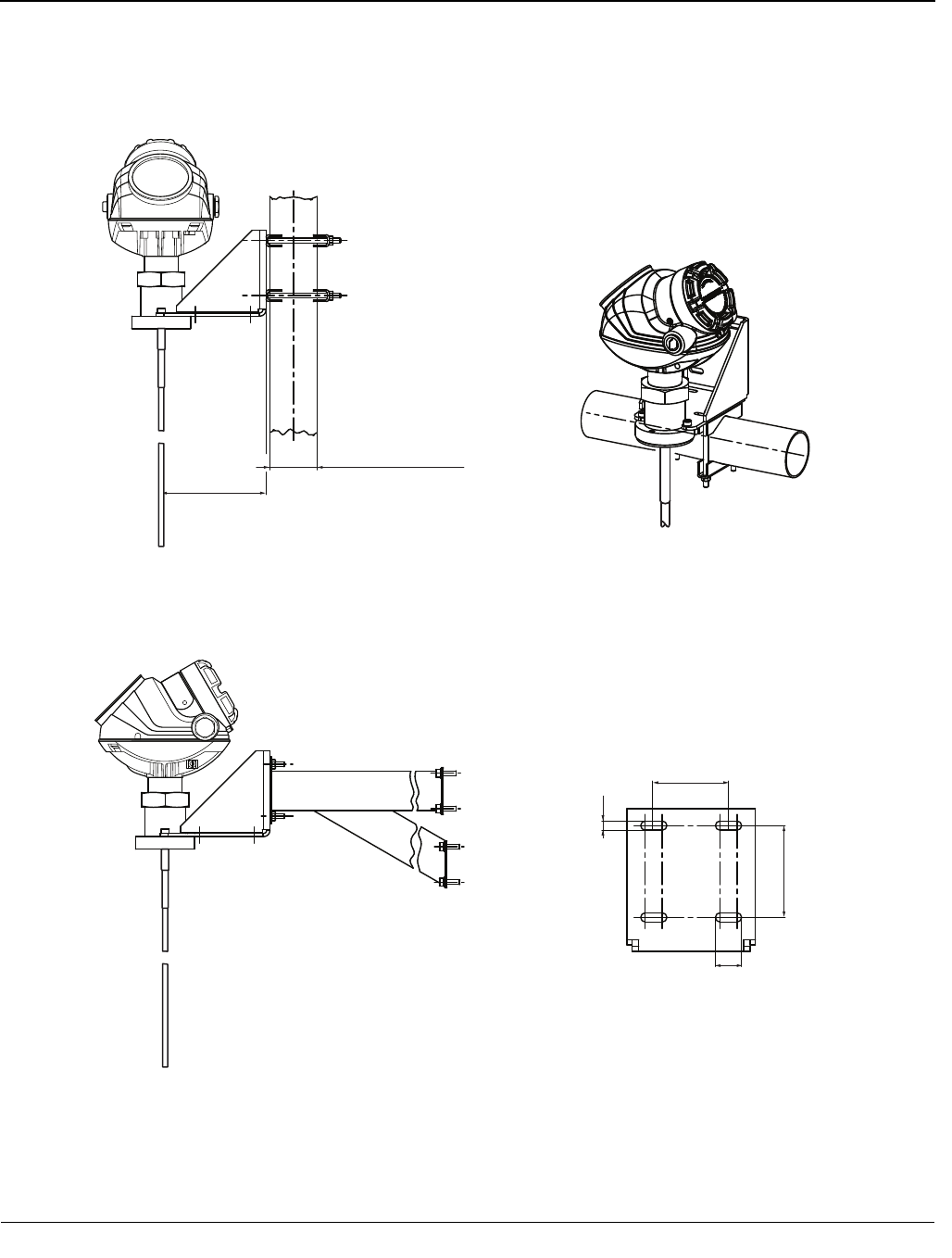

Figure 18. Mounting Bracket (Option Code BR)
Dimensions are in inches (millimeters).
5.2 (133)
Pipe diameter
max 2.5 in. (64 mm)
2.2 (57)
2.8 (70)
0.8 (20)
0.3 (7)
Pipe mounting
(vertical pipe)
Pipe mounting
(horizontal pipe)
Wall mounting Hole pattern
wall mounting
