Rosemount 5300 Series
October 2014

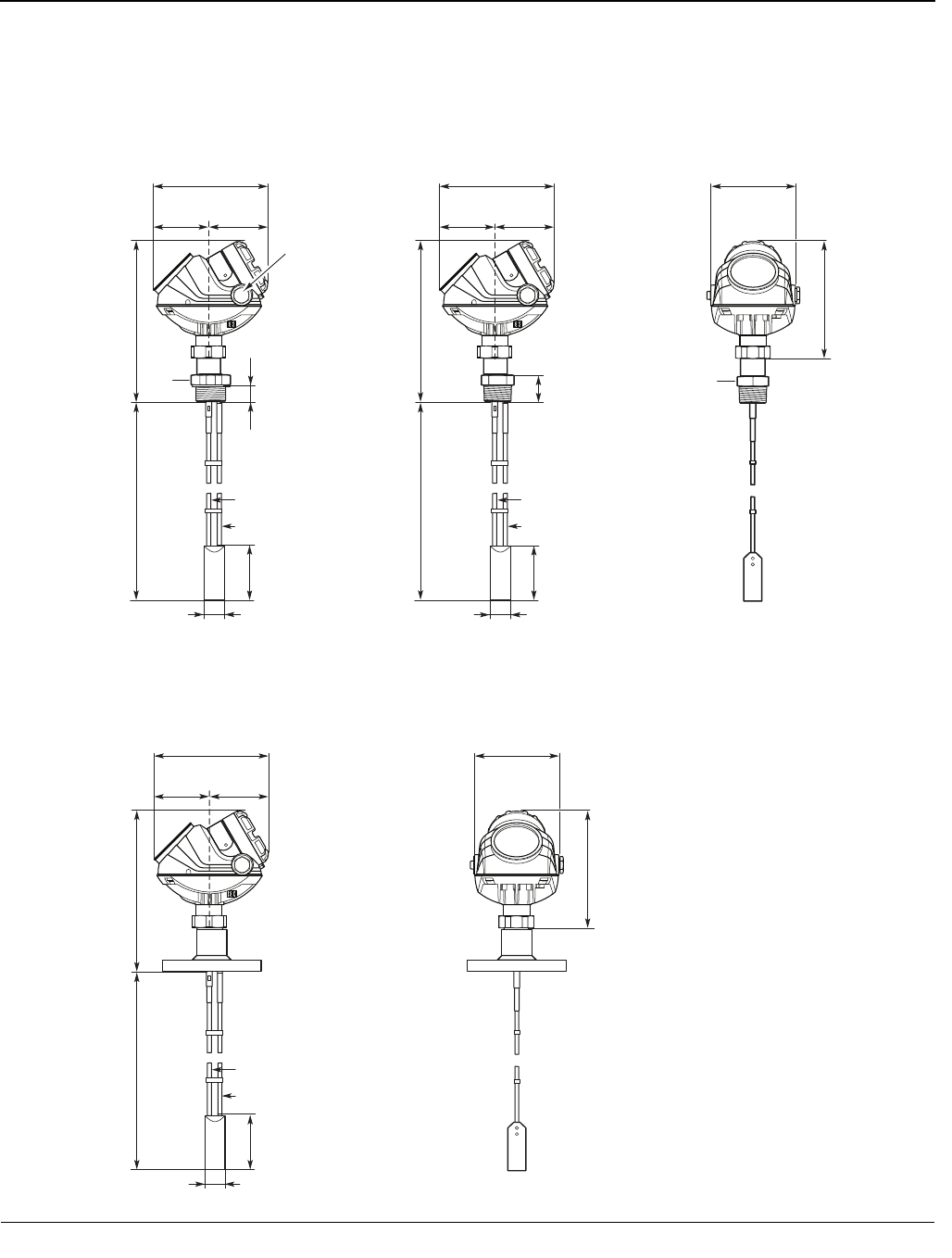

Figure 17. Flexible Twin Lead Probe
1.4 (35)
s60
3.5 (90)
3.5 (90)
Ø 0.16 (4)
Ø 0.16 (4)
1.4 (35)
5.2 (133)
7.4 (188.5)
1.8 (45)
L
 164 feet
(50 m)
7.1 (180)
3.4 (87)
Ø 0.16 (4)
Ø 0.16 (4)
G 1½ inch NPT 1½ / 2 inch NPT 1½ / 2 inch
1½ in.: s52
2 in.: s60
1.1 (27)
7.1 (180)
3.6 (92) 3.6 (92)3.4 (87)
L 164 feet
(50 m)
10.2 (259.5)
10.2 (259.5)
½ - 14 NPT
Optional adapters:
M20x1.5,
eurofast and
minifast
Dimensions are in inches (millimeters).
3.5 (90)
Ø 0.16 (4)
Ø 0.16 (4)
Flange
3.4 (87) 3.6 (92)
7.1 (180) 5.2 (133)
7.4 (188.5)
L
 164 feet
(50 m)
10.2 (259.5)
Flange
