Rosemount 5300 Series
October 2014

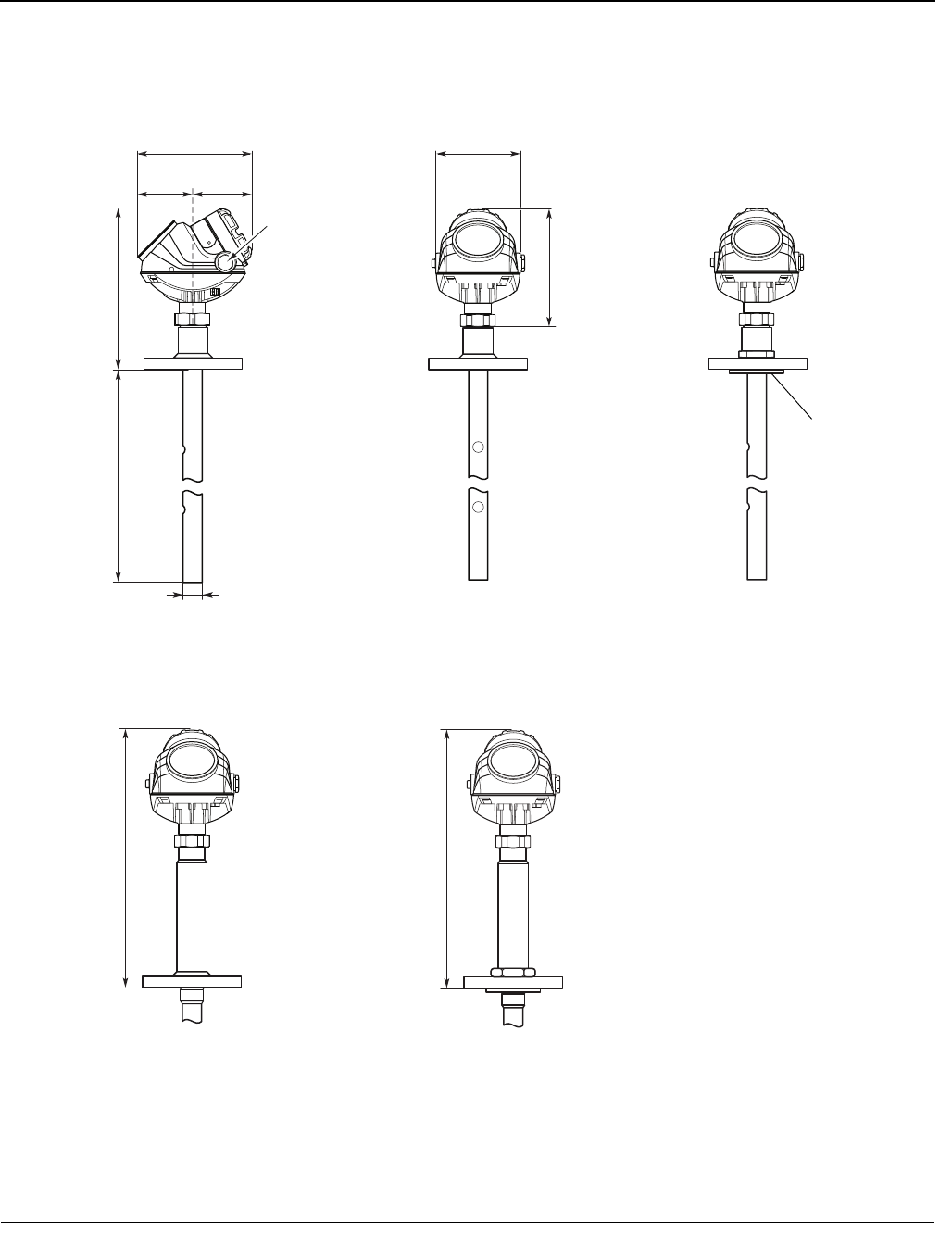

Figure 13. Coaxial Probe with Flange Connection
L 20 ft (6 m)
10.1 (257.1)
5.2 (133)7.1 (180)
3.4 (87) 3.6 (92)
1.1 (28)
7.4 (188.5)
½ - 14 NPT
Optional adapters:
M20x1.5,
eurofast and
minifast
The Alloy probes
are designed with
a protective plate
Dimensions are in inches (millimeters).
HTHP/HP/C version
15.6 (397.5)
15.6 (397.5)
HTHP/HP Plate Design
(Option for Alloy versions)
