Rosemount 5300 Series
October 2014

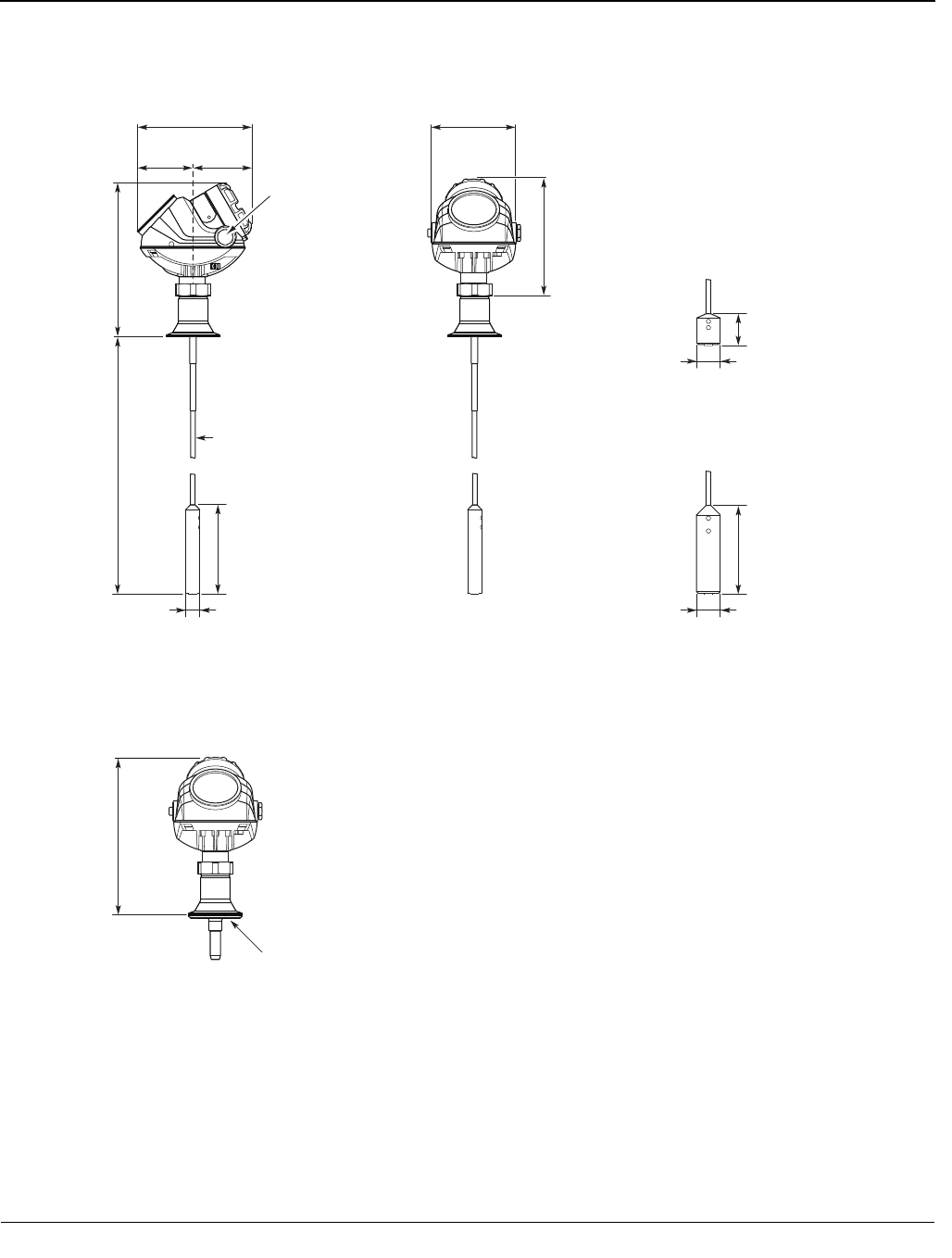

Figure 11. Flexible Single Lead Probe with Tri-Clamp Connection
7.1 (180)
3.4 (87) 3.6 (92)
L 164 ft (50 m)
The PTFE covered probe is
designed with a protective plate
10.1 (257.5)
Ø 0.86 (22): 4 mm SST probe
Ø 0.88 (22.5): PTFE covered probe
Ø 1.10 (28): 6 mm SST probe
Dimensions are in inches (millimeters).
5.2 (133)
7.4 (188.5)
½ - 14 NPT
Optional
adapters:
eurofast and
minifast
Ø 0.16 (4): SST probe
Ø 0.24 (6): SST probe
Ø 0.28 (7): PTFE covered probe
5.5 (140): 4 and 6 mm SST probes
17.1 (434): PTFE covered probe
Short weight
(option W2)
2 (50): 4 mm SST probe
Heavy weight
(option W3)
Ø 1.5 (37.5): 4 mm SST probe
5.5 (140): 4 mm SST probe
Ø 1.5 (37.5): 4 mm SST probe
10.1 (257.5)
