Rosemount 5300 Series
October 2014

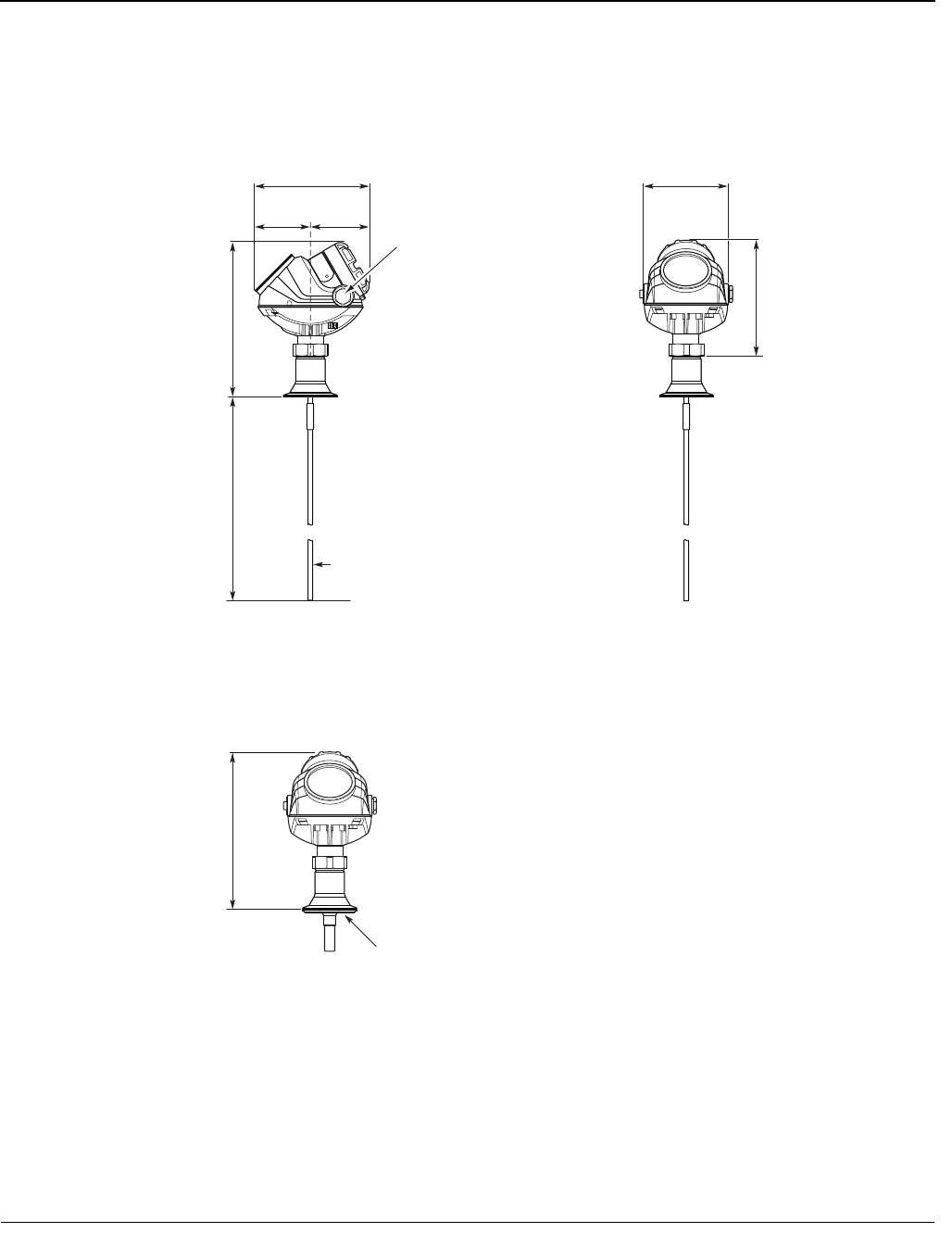

Figure 5. Rigid Single Lead Probe with Tri-Clamp Connection
PTFE covered probe and
protective plate
L 10 ft (3 m) for Ø 0.31 (8)
L 20 ft (6 m) for Ø 0.51 (13)
7.4 (188.5)
10.1 (257.5)
10.1 (257.5)
Dimensions are in inches (millimeters).
½ - 14 NPT
Optional adapters:
M20x1.5,
eurofast and
minifast
7.1 (180)
3.6 (92)3.4 (87)
5.2 (133)
Ø 0.31 (8) or 0.51 (13): SST probe
Ø 0.47 (12): PTFE covered probe
