Rosemount 5300 Series
October 2014
Dimensional Drawings

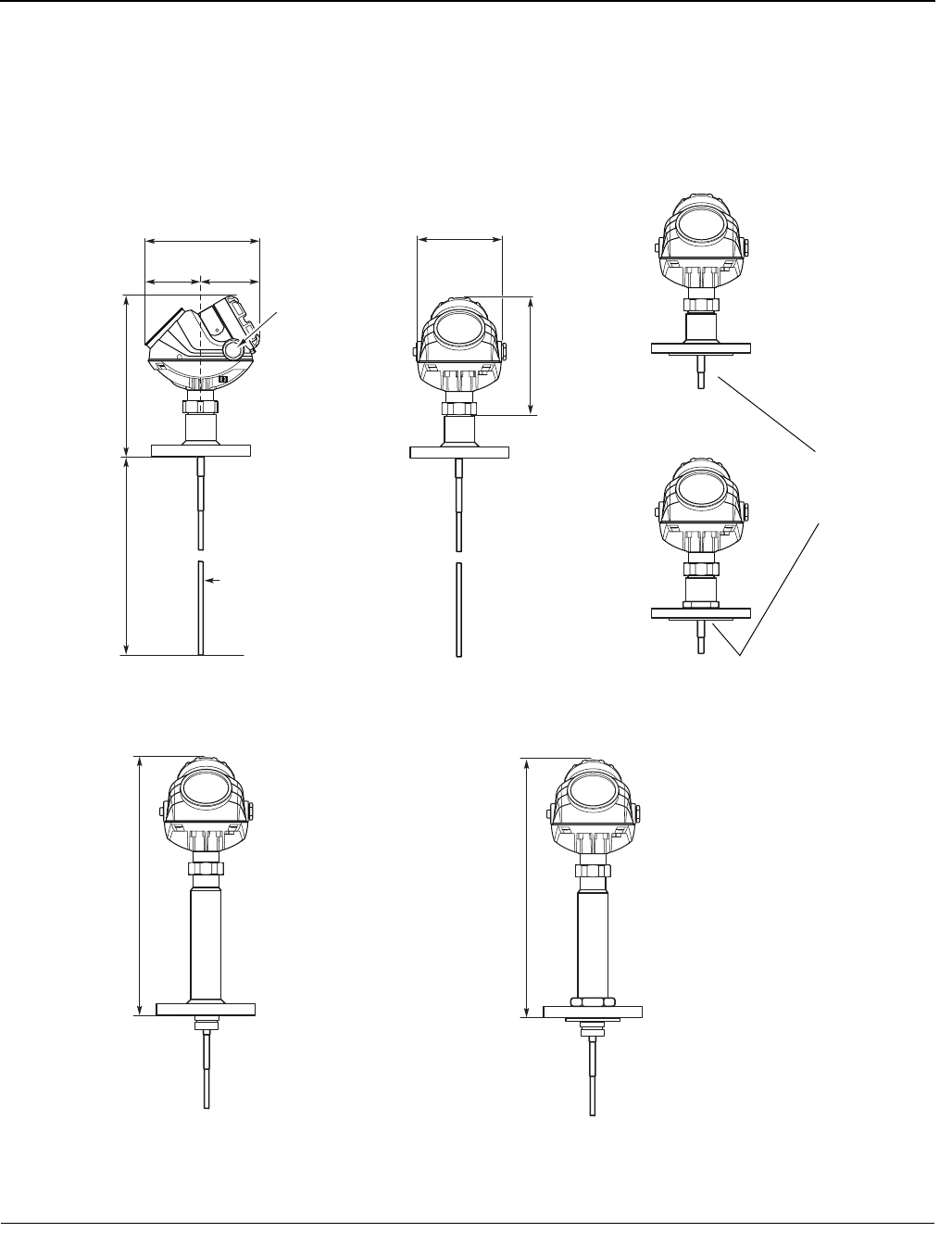

Figure 4. Rigid Single Lead Probe with Flange Connection
5.2 (133)
7.1 (180)
3.4 (87) 3.6 (92)
7.4 (188.5)
10.1 (257.5)
Ø 0.31 (8) or 0.51 (13): SST probe
Ø 0.47 (12): PTFE covered probe
½ - 14 NPT
Optional
adapters:
M20x1.5,
eurofast and
minifast
L
 10 ft (3 m)
for Ø 0.31 (8)
L
 20 ft (6 m)
for Ø 0.51 (13)
PTFE covered probe
and protective plate
Alloy probe and
protective plate
The PTFE and Alloy
probes are designed
with a protective plate
HTHP/HP/C version
15.6 (397.5)
15.6 (397.5)
HTHP/HP Plate Design
(Option for Alloy versions)
Dimensions are in inches (millimeters).
