Rosemount 5300 Series
October 2014
Rosemount 5301 and 5302 Level and/or Interface in
Liquids Ordering Information

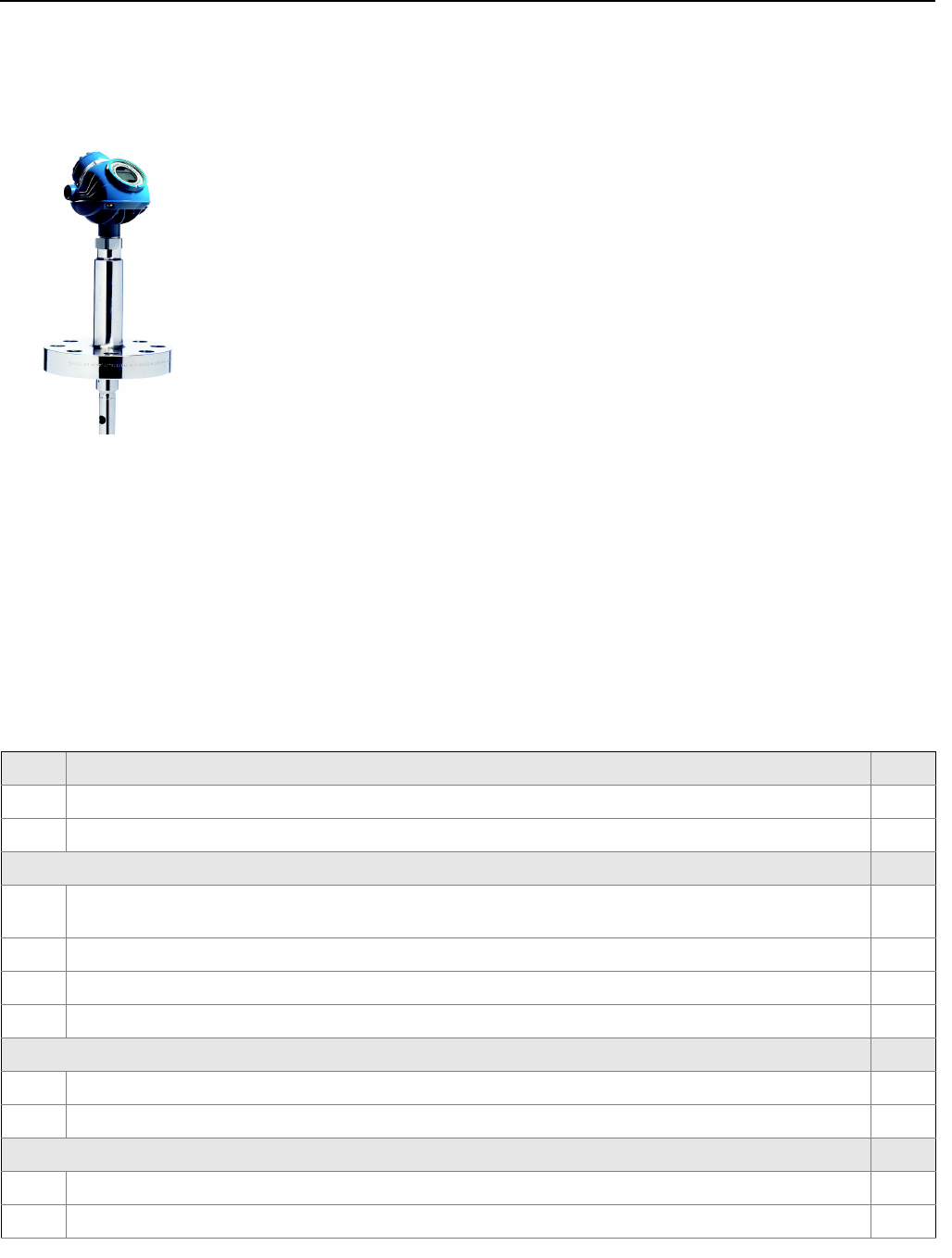

Rosemount 5301 and 5302 Guided Wave Radar Level transmitters provide industry leading
measurement capabilities and reliability in liquids. Characteristics include:
 Direct Switch Technology and Probe End Projection to handle low reflective media and long
measuring ranges
 Wide range of probe styles, materials, and temperatures and pressures for application flexibility
 HART 4-20 mA, FOUNDATION fieldbus, Modbus, or IEC 62591 (WirelessHART) with the Smart
Wireless THUM Adapter (see page 24 for details)
 Safety-certified to IEC 61508 (option code QT)
 Advanced Diagnostics (option code D01 or DA1)
 Transmitter verification and high level supervision (option code HL1, HL2, or HL3)
Additional information
Specifications: page 23
Certifications: page 55
Dimensional drawings: page 61
Specification and selection of product materials, options, or components must be made by the purchaser of the equipment.
See page 46 for more information on Material Selection.
Table 1. 5301 and 5302 Level and/or Interface in Liquids Ordering Information
The starred options (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject
to additional delivery lead time.
Model Product description
5301 Guided Wave Radar Liquid Level or Interface Transmitter (interface available for fully submerged probe)
★
5302 Guided Wave Radar Liquid Level and Interface Transmitter
★
Signal output
H
4-20 mA with HART communication (default output from factory is HART 5, add option code HR7 for HART 7)
(see page 23 for details)
★
FFOUNDATION fieldbus (see page 26 for details)
★
M RS-485 with Modbus communication (see page 27 for details)
★
U Rosemount 2410 Tank Hub Connectivity
Housing material
A Polyurethane-covered Aluminum
★
S Stainless Steel, Grade CF8M (ASTM A743)
Conduit / cable threads
1 ½ - 14 NPT
★
2 M20 x 1.5 adapter
★
