Rosemount 5300 Series
October 2014
Nozzle Considerations
(see Table 11 on page 52)
Minimum Clearance
(See Table 12 on page 53)

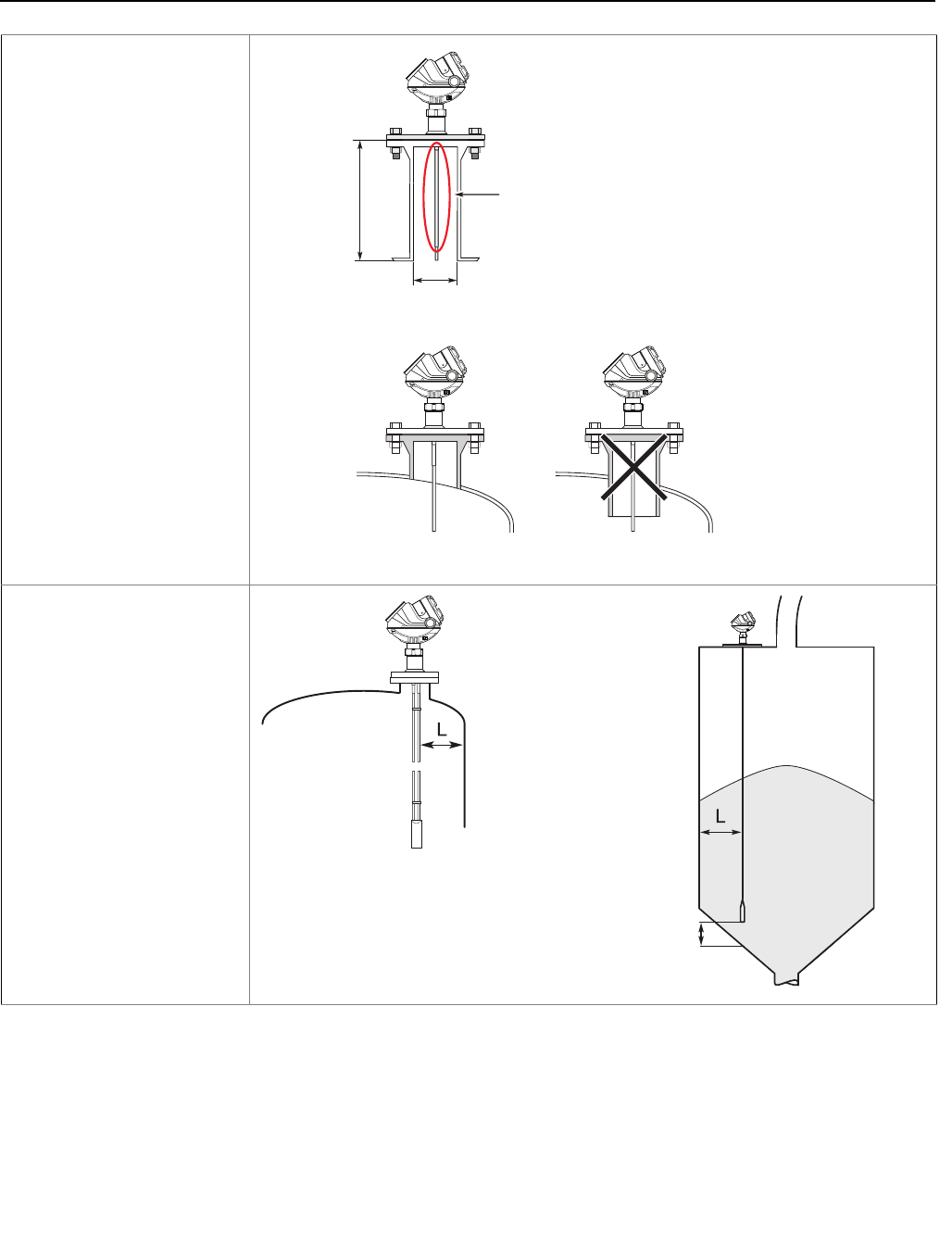

Nozzle height
Long Stud (9.8 in./250 mm). When using
single flexible probes in tall and narrow
nozzles, a Long Stud (LS option) is
recommended to prevent the probe from
contacting the nozzle.
Nozzle diameter
Make sure the nozzle does not extend into the tank.
Clearance to tank wall
Avoid direct contact
