Rosemount 5300 Series
October 2014
Total Probe Length
This is defined from the upper reference point to the end of the probe (weight included, if
applicable).
Select the probe length according to the required measuring range (the probe must be hung
and fully extended through the entire distance where level readings are desired).
Most of the probes can be cut in field. However, there are some restrictions for the standard and
HP/C coaxial probes: these can be cut up to 2 ft. (0.6 m). Probes shorter than 4.1 ft. (1.25 m)
can be cut to the minimum length of 1.3 ft. (0.4 m). The HTHP coaxial probe and the PTFE
covered probes cannot be cut in the field.
Minimum and Maximum Probe
Length
Coaxial: 1.3 ft (0.4 m) to 19.7 ft (6 m).
Rigid Twin Lead: 1.3 ft (0.4 m) to 9.8 ft (3 m).
Flexible Twin Lead: 3.3 ft (1 m) to 164 ft (50 m).
Rigid Single Lead (0.3 in./8 mm): 1.3 ft (0.4 m) to 9.8 ft (3 m)
Rigid Single Lead (0.5 in./13 mm): 1.3 ft (0.4 m) to 19.7 ft (6 m)
Segmented Rigid Single Lead (0.5 in./13 mm): 1.3 ft (0.4 m) to 32.8 ft (10 m)
Flexible Single Lead: 3.3 ft (1 m) to 164 ft (50 m)
Probe Angle
0 to 90 degrees from vertical axis
Note
Models with QT option code should not be installed in angled probe installations.
Tensile Strength
0.16 in. (4 mm) Flexible Single Lead SST probe: 2698 lb (12 kN)
0.16 in. (4 mm) Flexible Single Lead Alloy 400 probe: 1124 lb (5 kN)
0.24 in. (6 mm) Flexible Single Lead SST probe: 6519 lb (29 kN)
Flexible Twin Lead SST probe: 2023 lb (9 kN)
Collapse Load
0.16 in. (4 mm) Flexible Single Lead SST probe: 3597 lb (16 kN)
0.16 in. (4 mm) Flexible Single Lead Alloy 400 probe: 1349 lb (6 kN)
0.24 in. (6 mm) Flexible Single Lead SST probe: 7868 lb (35 kN)
Sideway Capacity
Coaxial probe: 73.7 ft. lbf, 3.7 lb at 19.7 ft. (100 Nm, 1.67 kg at 6 m)
Rigid Twin Lead: 2.2 ft. lbf, 0.22 lb at 9.8 ft. (3 Nm, 0.1 kg at 3 m)
Rigid Single Lead/Segmented Rigid Single Lead: 4.4 ft. lbf, 0.44 lb at 9.8 ft. (6 Nm, 0.2 kg at 3 m)

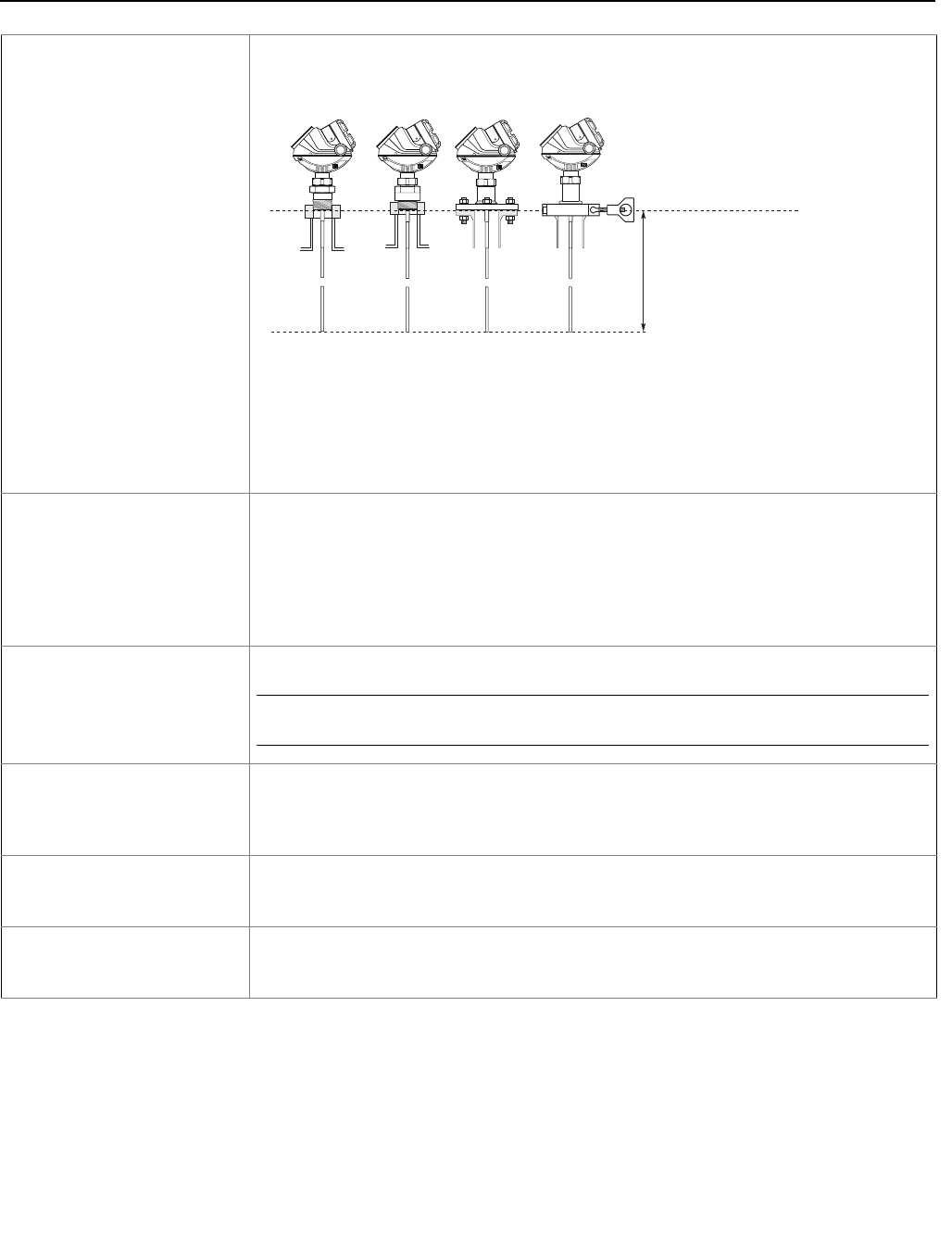

Total Probe Length
NPT BSP/G Flange Tri-Clamp
Upper Reference Point
