Rosemount 5300 Series
October 2014

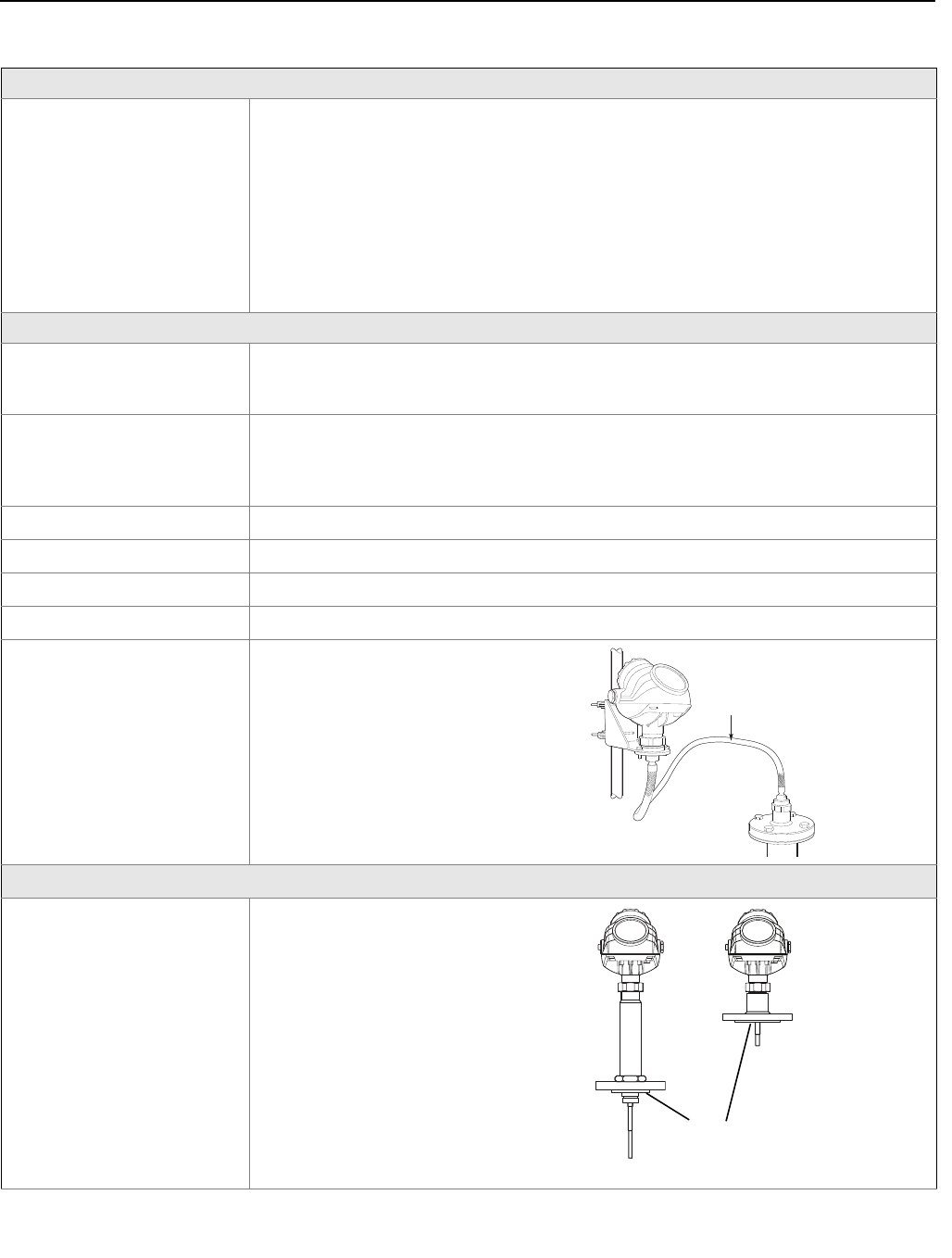

Physical specifications
Material selection
Material selection
Emerson provides a variety of Rosemount product with various product options and
configurations including materials of construction that can be expected to perform well in a
wide range of applications. The Rosemount product information presented is intended as a
guide for the purchaser to make an appropriate selection for the application. It is the
purchaser’s sole responsibility to make a careful analysis of all process parameters (such as all
chemical components, temperature, pressure, flow rate, abrasives, contaminants, etc.), when
specifying product, materials, options and components for the particular application. Emerson
Process Management is not in a position to evaluate or guarantee the compatibility of the
process fluid or other process parameters with the product, options, configuration or materials
of construction selected.
Housing and enclosure
Type
Dual compartment (terminal compartment and the electronics are completely separated).
Two entries for conduit or cable connections. The transmitter housing can be rotated in any
direction.
Electrical Connection
½ - 14 NPT for cable glands or conduit entries.
Optional: M20 x 1.5 conduit / cable adapter, M12 4-pin male eurofast connector or A size Mini
4-pin male minifast connector. Recommended output cabling is twisted shielded pairs, 24-12
AWG
Housing Material Polyurethane-covered Aluminum, or Stainless Steel Grade CF8M (ASTM A743)
Ingress Protection NEMA 4X, IP 66, IP67
Factory Sealed Yes
Weight Transmitter Head (TH): Aluminium 4.4 lb (2 kg), SST 10.8 lb (4.9 kg).
Remote Housing Mounting
Kit that includes a flexible armored
extension cable and a bracket for wall or
pipe mounting. See “Remote Housing
(Option Code B1, B2, B3)” on page 76 for
the dimensions.
Tank connection and probe
Tank Connection
The tank connection consists of a tank seal,
a flange, Tri-Clamp, or NPT or BSP/G
threads.
Certain models of flanged alloy and PTFE
covered probes have a tank connection
design with a protective plate of the same
material as the probe. This is to prevent the
316L / EN 1.4404 SST flange from being
exposed to the tank atmosphere.
See “Dimensional Drawings” on page 61.
Remote Housing Mounting Cable:
3, 6, or 9 ft (1, 2, or 3 m)
Tank seal with
protective plate
design
