Product data

32
www.rosemount.com
Rosemount 5300 Series
October 2014
Process Temperature
(continued)

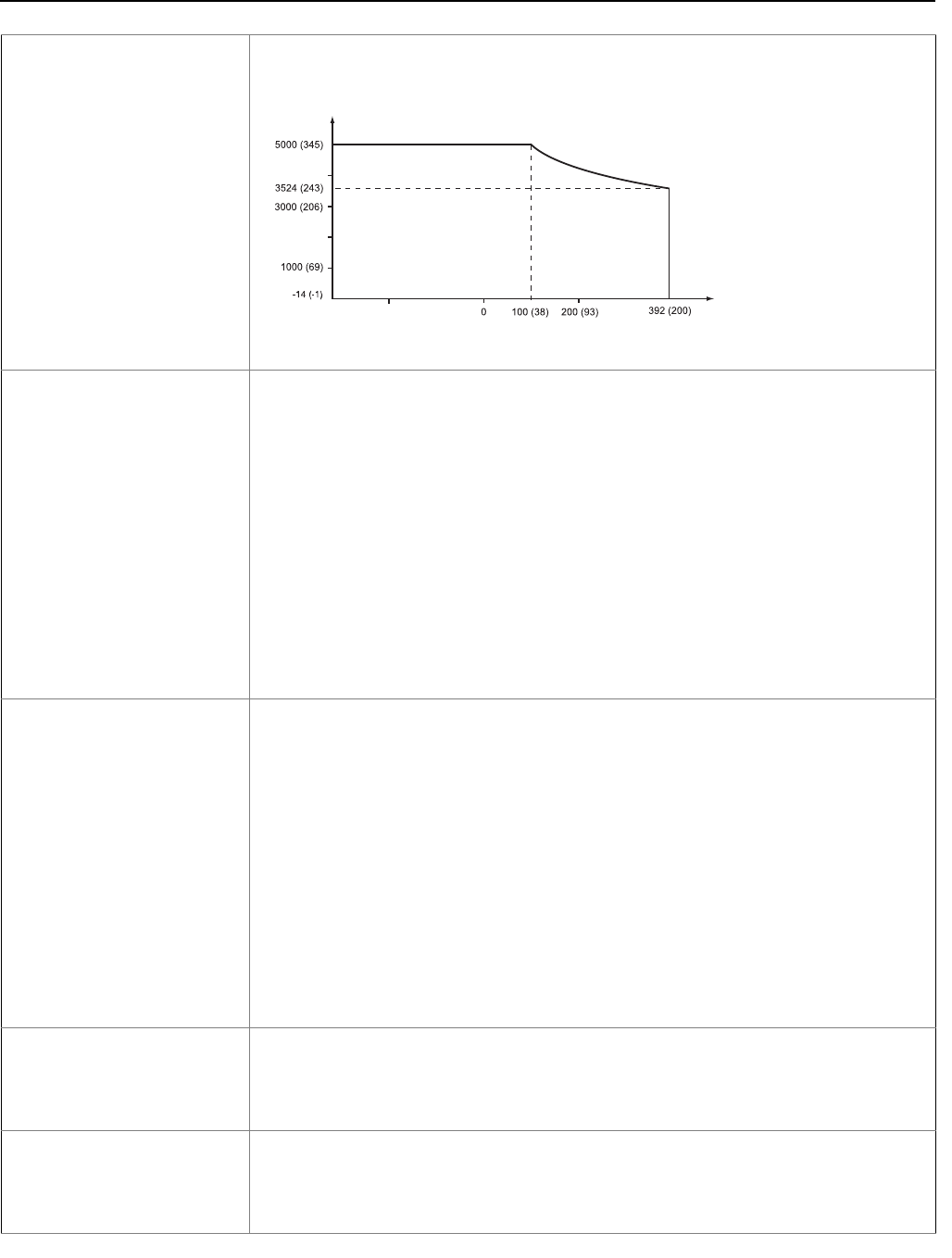

Max. Rating, Cryogenic Temperature Tank connections
(Operating Temperature and Pressure code C)
Final rating may be lower depending on flange selection.
ASME / ANSI Flange Rating
316L SST flanges according to ASME B16.5 Table 2-2.3:
 Standard: Max. 302 °F/580 psig (150 °C/40 Bar)
 HP/C: Class 2500 up to max 392 °F (200 °C)
 HTHP: Class 2500 up to max 752 °F (400 °C)
Alloy C-276 (UNS N10276) flanges according to ASME B16.5 Table 2-3.8:
 Standard: Max. 302 °F/580 psig (150 °C/40 Bar)
 HP: Class 1500 up to max 392 °F (200 °C)
 HTHP: Class 1500 up to max 752 °F (400 °C)
Duplex 2205 (UNS S31803) flanges according to ASME B16.5 table 2-2.8:
 Standard: Max. 302 °F/580 psig (150 °C/40 Bar)
 HP: Class 1500, -51 °F (-46 °C) up to max 392 °F (200 °C)
 HTHP: Class 1500, -51 °F (-46 °C) up to max 599 °F (315 °C)
EN Flange Rating
EN 1.4404 according to EN 1092-1 material group 13E0:
 Standard: Max. 302 °F/580 psig (150 °C/40 Bar)
 HP/C: PN 320 up to max 392 °F (200 °C)
 HTHP: PN 320 up to max 752 °F (400 °C)
Alloy C-276 (UNS N10276) flanges according to EN 1092-1 material group 12E0:
 Standard: Max. 302 °F/580 psig (150 °C/40 Bar)
 HP: PN 320 up to max 392 °F (200 °C)
 HTHP: PN 320 up to max 752 °F (400 °C)
Duplex 2205 (EN 1.4462) flanges according to EN 1092-1 material group 16E0:
 Standard: Max. 580 psig (40 Bar), -22 °F (-30 °C) up to max 302 °F (150 °C)
(3)
 HP: PN 320, -22 °F (-30 °C) up to max 392 °F (200 °C)
(3)
 HTHP: PN 320, -22 °F (-30 °C) up to max 482 °F (250 °C)
(3)
Fisher & Masoneilan Flange
Rating
316L SST according to ASME B16.5 Table 2-2.3:
 Standard: Max. 302 °F/580 psig (150 °C/40 Bar)
 HP/C: Class 600 up to max 200 °C
 HTHP: Class 600 up to max 400 °C
JIS Flange Rating
316L SST according to JIS B2220 material group 2.3:
 Standard: Max. 302 °F/580 psig (150 °C/40 Bar)
 HP/C: Max. temp. 200 °C. Final rating depends on flange.
 HTHP: Max. temp. 400 °C. Final rating depends on flange.
-200 (-129)
-320 (-196)
Temperature °F (°C)
Pressure psig (bar)
