www.rosemount.com
Rosemount 5300 Series
October 2014

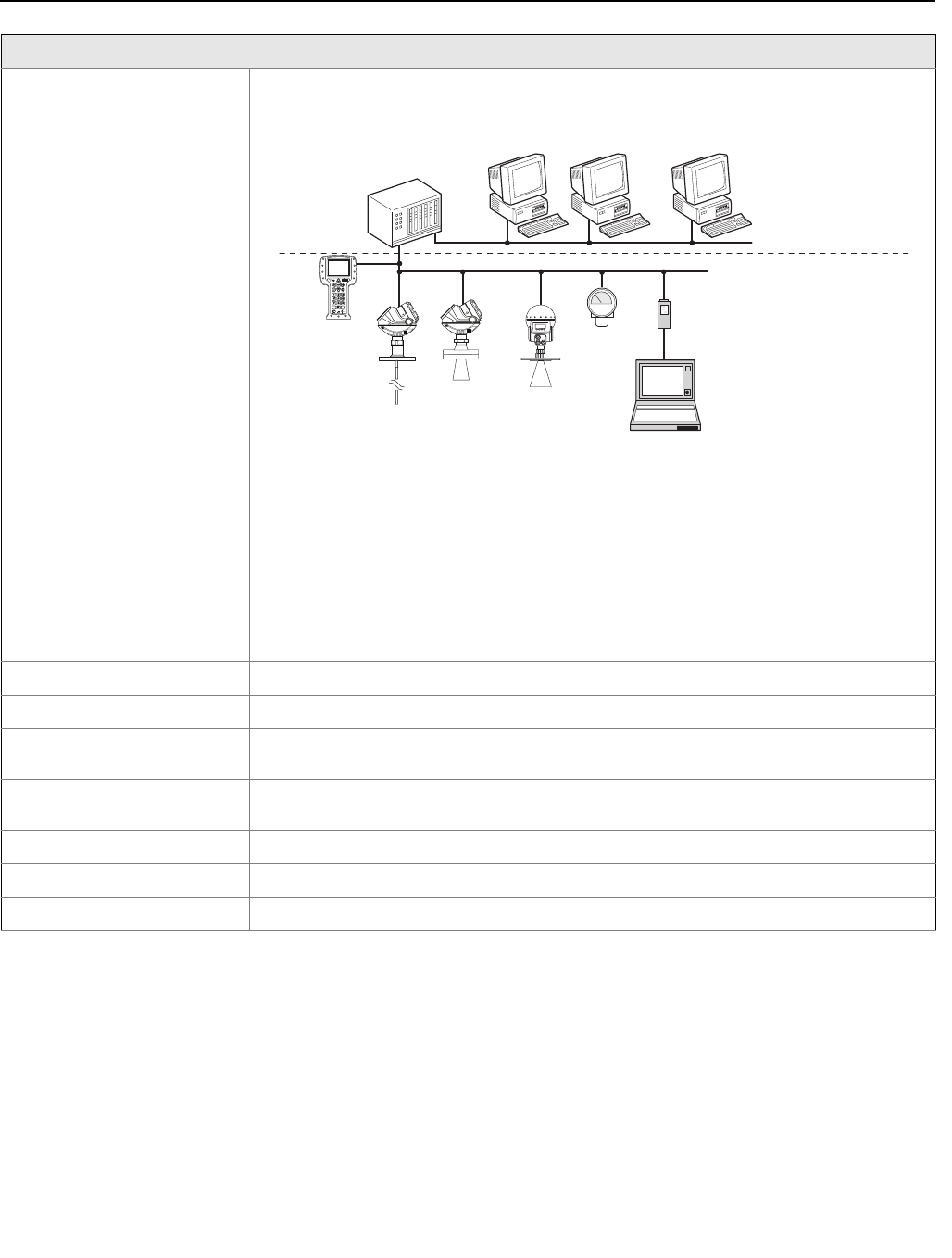

FOUNDATION™ fieldbus (output option code F) - (see signal output in Table 1 on page 5 and Table 2 on page 15)
Output
External Power Supply
(1)
The input voltage for FOUNDATION fieldbus is 9-32 Vdc (9-30 Vdc in IS applications, and 16-32
Vdc in Explosion-proof/Flameproof applications).
The input voltage for FISCO, IS applications is 9-17.5 Vdc.
For Flameproof/Explosion-proof installations the Rosemount 5300 Series transmitters have a
built-in barrier; no external barrier needed.
(2)
Quiescent Current Draw 22 mA
FOUNDATION fieldbus Blocks 1 RB(e), 6 AI(e), 1 PID(e), 1 SC(s), 1 IT(s), 1 AR(s), 1 IS(e), 1 CS(s), 1 OS(s), 3 TB(c)
FOUNDATION fieldbus Class
(Basic or Link Master)
Link Master (LAS)
F
OUNDATION fieldbus Block
Execution Time
AI: 10 ms, PID: 15 ms, SC: 10 ms, IT: 10 ms, AR: 10 ms, IS: 10 ms
F
OUNDATION fieldbus Instantiation Yes
Conforming FOUNDATION fieldbus ITK 6.0.1
FOUNDATION fieldbus Alerts Field Diagnostics Alerts and PlantWeb Alerts
