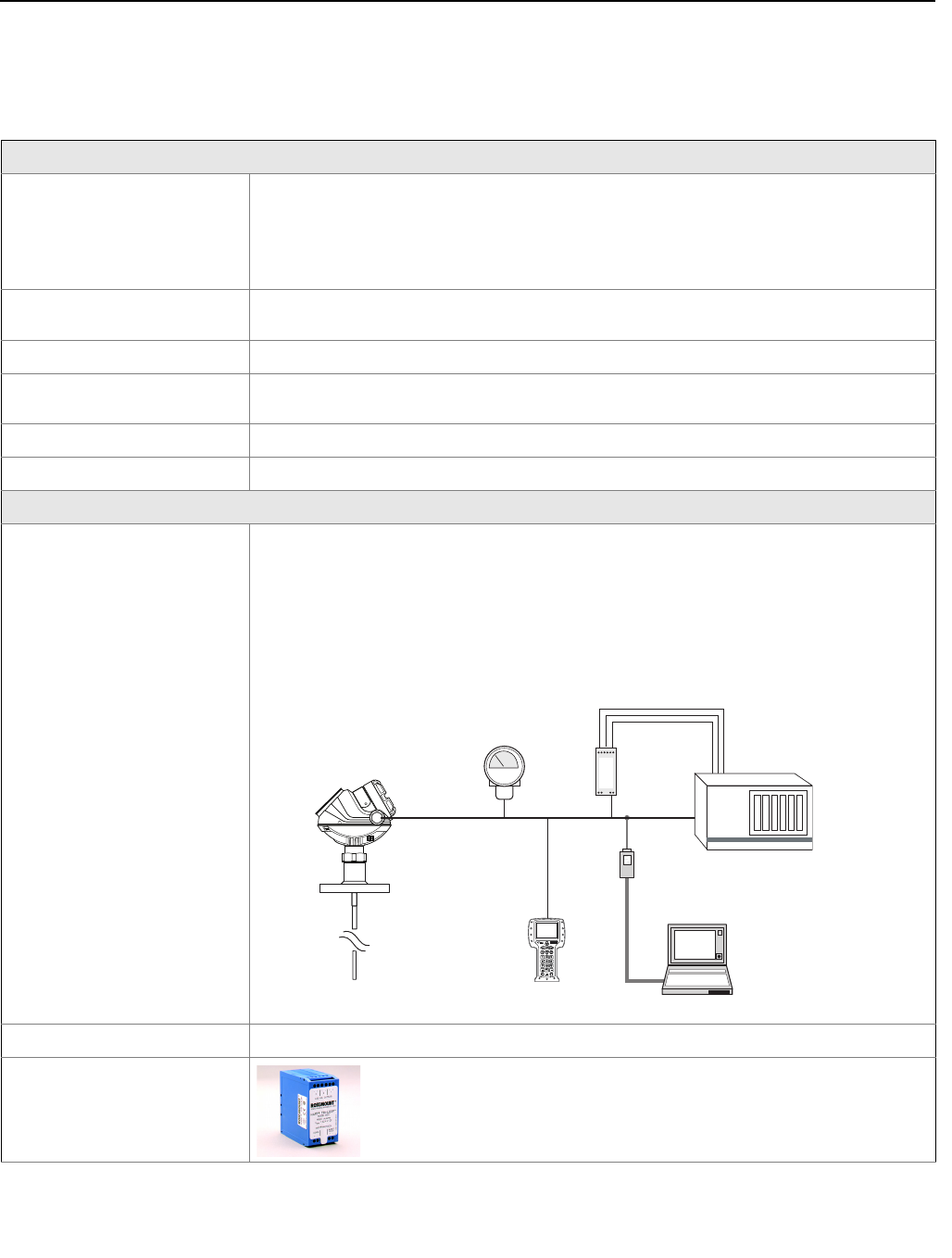

Rosemount 5300 Series
October 2014
Specifications
Functional specifications
General
Field of Application
Liquids and semi-liquids level and/or liquid/liquid interfaces or solids level
 Model 5301, for liquid level or submerged interface measurements
 Model 5302, for liquid level and interface measurements
 Model 5303, for solid level measurements
Measurement Principle
Time Domain Reflectometry (TDR)
(See “Measurement principle” on page 2 for a description of how it works)
Microwave Output Power Nominal 300 μW, Max. 45 mW
Telecommunication
(FCC and R&TTE)
FCC part 15 (1998) subpart B and R&TTE (EU directive 99/5/EC). Considered to be an
unintentional radiator under the Part 15 rules
Humidity 0 - 100% Relative Humidity
Start-up Time < 40 s
4-20 mA HART (output option code H) - (see signal output in Table 1 on page 5 and Table 2 on page 15)
Output
Two-wire, 4–20 mA. Digital process variable is superimposed on 4–20 mA signal, and available
to any host that conforms to the HART protocol. The HART signal can be used in a multidrop
mode.
The default output is HART Revision 5. To order HART Revision 7 factory configured, add option
code HR7. The device can also be field configured to HART Revision 7 if needed.
Signal Wiring Recommended output cabling is twisted shielded pairs, 24-12 AWG
HART Tri-Loop
By sending the digital HART signal to the optional HART Tri-Loop, it is possible
to have up to three additional 4–20 mA analog signals. See the Rosemount 333
HART Tri-Loop Product Data Sheet (document number 00813-0100-4754) for
additional information.
Rosemount 5300
Series Transmitter
Rosemount 751 Field
Signal Indicator
Rosemount
333 HART
Tri-Loop™
3 x 4-20 mA
Control
System
4-20 mA / HART
475 Field Communicator
PC with Rosemount
Radar Master
HART
Modem
