60 Designing Touch Panel Pages ViewPoint Wireless Touch Panels
15. Press PROPERTIES in the BUTTON OPTIONS menu to open the PROPERTIES
operation bar shown in Figure 81.
16. Press the NEW PAGE button to open the Button Properties page.
17. Press the page FLIP buttons (Figure 82) to set the page flip properties for the but-
ton.
18. Press the left Flip Type box in the Button Properties page to open the PAGE FLIP
TYPE menu (Figure 83).
19. Press FLIP STANDARD to select a standard page flip and return to the Button
Properties page.
20. Press the right Page Flip box to set the destination page (Figure 84).

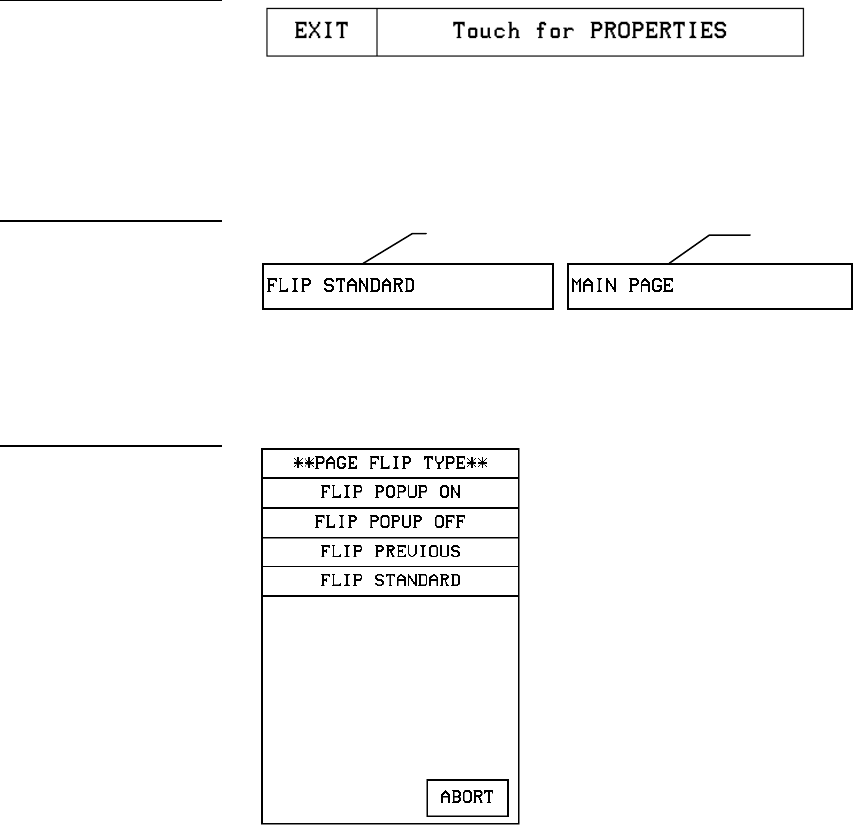

Figure 81
PROPERTIES operation bar
Figure 82
Page FLIP buttons
Figure 83
PAGE FLIP TYPE menu
Page Flip Type button
Flip to Page button
