58 Designing Touch Panel Pages ViewPoint Wireless Touch Panels
Setting the bargraph colors/shades for channel-off conditions
1. Press the target button to open the Button Properties page.
2. Press BORDER (Figure 68) in the CHANNEL OFF COLOR section of the Button
Properties page.
3. The color palette (Figure 78) appears.
4. Press black to set the border color.
5. Press the FILL button in the Button Properties page to open the color palette.
6. Press white to set the fill color.
7. Press the TEXT button to open the palette.
8. Press red to set the text color.
9. Press EXIT SAVE CHANGE in the Button Properties page to store the new but-
ton properties into memory and return to the current page.
10. Press EXIT on the PROPERTIES operation bar.
Note
Bargraphs only function on
VPN-CP/VPN-GS touch pan-
els.

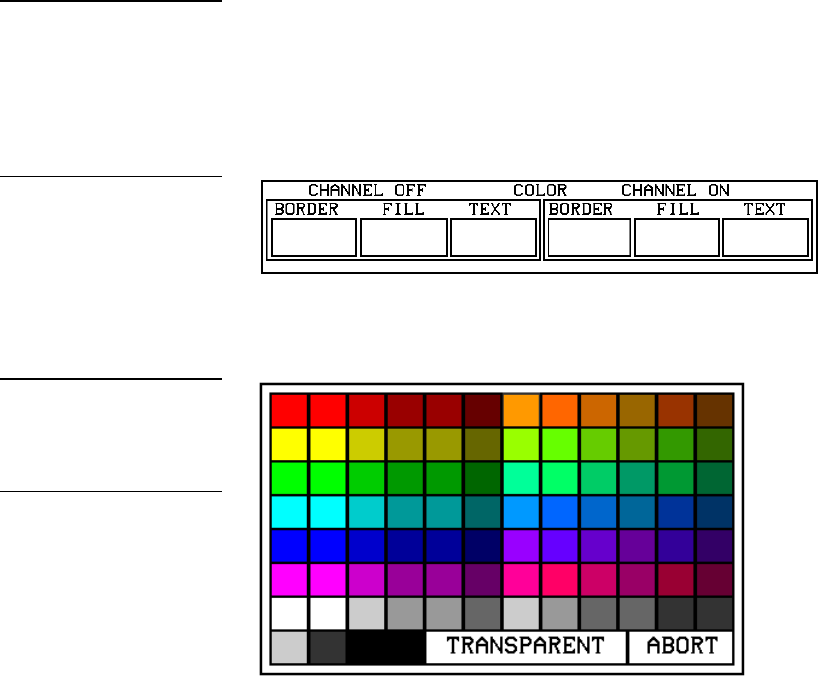

Figure 77
CHANNEL OFF/ON COLOR
settings box
Figure 78
Color palette
Note
The VPT-GS and VPN-GS
only display gray shades for
selec
tion.
