ViewPoint Wireless Touch Panels Designing Touch Panel Pages 57
1. Press DEV to open a keypad and set the device number.
2. Enter 1, 2, 3, or 4 in the keypad. The programming software uses device codes 1
through 4 to identify the touch panel. Refer to the ViewPoint Wireless Touch Panels
- Program Reference instruction manual for detailed information.
3. Press ENTER to store the device number in memory, close the keypad, and re-
turn to the Button Properties page.
4. Press CHAN to open a keypad and set the channel number.
5. Enter a channel value of 1 through 255 in the keypad. The programming soft-
ware uses the channel code number to identify the button and its operations.
6. Press ENTER to store the channel number into memory, close the keypad, and
return to the Button Properties page.
Setting the level code
The level buttons that set the device and number codes for the touch panels are
shown in Figure 76.
1. Press DEV to open a keypad and set the device number.
2. Enter 1, 2, 3, or 4 in the keypad. The programming software uses device codes 1
through 4 to identify the touch panel. Refer to the ViewPoint Wireless Touch Panels
- Program Reference instruction manual for detailed information.
3. Press ENTER to store the level device number into memory, close the keypad,
and return to the Button Properties page.
4. Press NUM to open a keypad and set the level number assigned to the device.
5. Enter 1 in the keypad.
6. Press ENTER to store the level number into memory, close the keypad, and re-
turn to the Button Properties page.
7. Press EXIT SAVE CHANGE, then EXIT to return to the New page with the EDIT
button.
Note
The panel does not allow you
to enter a device number
greater than the DEVICE
USED without first displaying
a decision box. This box asks
you to decide whether you
accept the new selection or
default to the previous value.
Note
The channel codes for non-
active buttons are 0, and ac-
tive buttons is 1 through 255.

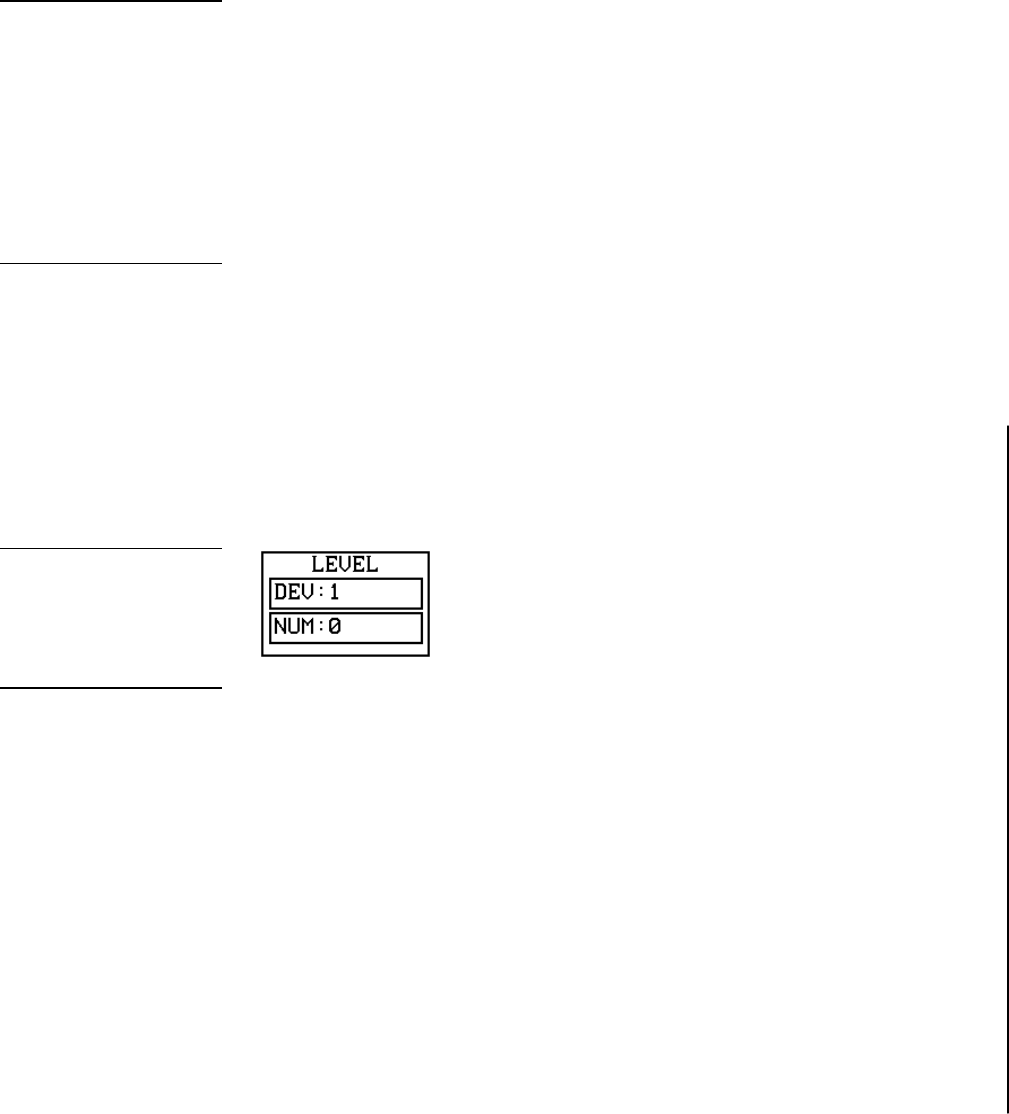

Figure 76
LEVEL code buttons
Note
The panel does not allow you
to enter a device number
greater than the DEVICE
USED without first displaying
a decision box. This box asks
you to decide whether you
accept the new selection or
default to the previous value.
