1. Press DEV to open a keypad and set the device number.
2. Enter 1, 2, 3, or 4 in the keypad. The programming software uses device codes 1
through 4 to identify the touch panel. Refer to the ViewPoint Wireless Touch Panels
- Program Reference instruction manual for detailed information.
3. Press ENTER to store the level device number in memory, close the keypad, and
return to the Button Properties page.
4. Press NUM to open a keypad and set the level number assigned to the device.
5. Enter 1 in the keypad.
6. Each device can have from 1 through 8 levels except for joysticks where the
range is from 1 through 7.
Setting the joystick colors/shades for channel-off conditions
1. Press the target button to open the Button Properties page.
2. Press BORDER (Figure 68) in the CHANNEL OFF COLOR section of the Button
Properties page.
3. The color palette (Figure 69) appears.
4. Press black to set the border color.
Note
The panel does not allow you
to enter a device number
greater than the DEVICE
USED without first displaying
a decision box. This box asks
you to decide whether you
accept the new selection or
default to the previous value.
Note
Joysticks actually use two
level numbers. The first is for
the X-axis and the second is
for the Y-axis. You only need
to specify the first level.

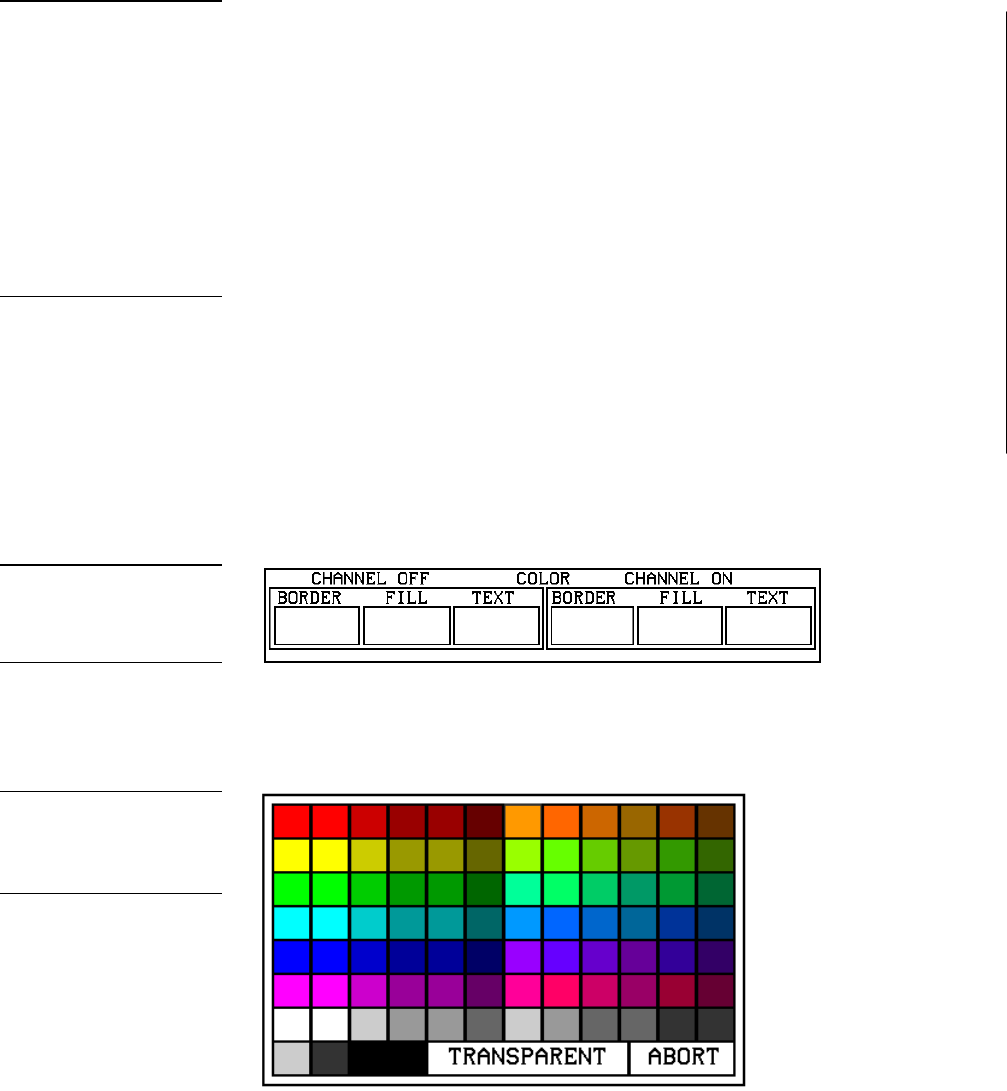

Figure 68
CHANNEL OFF/ON COLOR
settings box
Note
Joysticks only function on
VPN-CP/VPN-GS touch pan-
els.
Figure 69
Color palette
Note
The VPT-GS and VPN-GS
only display gray shades for
selec
tion.
