50 Designing Touch Panel Pages ViewPoint Wireless Touch Panels
5. Press JOYSTICK to set the target button as a joystick.
6. Press BUTTON OPTIONS on the Button Properties page to open the BUTTON
OPTION menu for Joysticks shown in Figure 63.
7. Press CROSSHAIR CENTER to set a crosshair in the center of the joystick button
and return to the Button Properties page.
8. Press EXIT SAVE CHANGE to return to the Main page.
9. Press EXIT to exit from the PROPERTIES operation bar.
Setting the joystick properties
1. Press EDIT, BUTTON, and the PROPERTIES operation bar.
2. Press the target button to open the Button Properties page.
3. Press BUTTON TYPE to open the BUTTON TYPE menu (Figure 41).
4. Press JOYSTICK in the BUTTON TYPE menu to open the Button Properties page
shown in Figure 64.

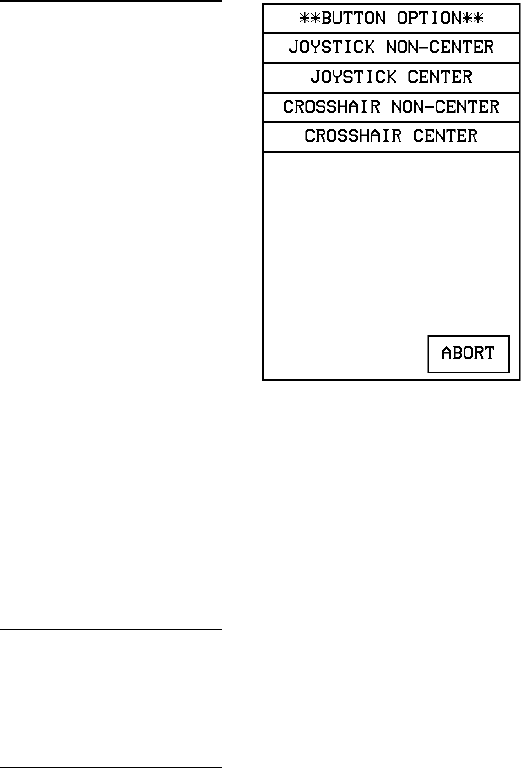

Figure 63
BUTTON OPTION menu for
Joysticks
Note
Joysticks only function on
VPN-CP/VPN-GS touch pan-
els.
Note
One-way ViewPoint touch
panels do not support variable
text.
