42 Designing Touch Panel Pages ViewPoint Wireless Touch Panels
Using TPDesign3 to Download Bitmaps, Icons, and Fonts
TPDesign3 allows you to import bitmaps, icons, and fonts into your touch panel from
an existing touch panel program. Use the Download to Panel button to download a
project file.
To download bitmaps, icons and/or fonts from an existing TPDesign3 project file:
1. Launch the TPDesign3 software program and open a project file that contains the
desired bitmaps, icons, and fonts.
2. Select File from the menu bar to open the File menu.
3. In the File menu, click on Download to Panel, this opens the Download to Panel-
Actions tab shown in Figure 54. Use this tab to set the communication mode and
select which elements of the project file you want to download to the touch
panel.
4. In the What To Send area, select one or more of the available options (Bitmaps,
Icons, Fonts).
5. Select the mode of communication with the touch panel.
6. Click on the Comm Settings tab shown in Figure 55. Use this tab to set the com-
munications port, baud rate, and other communication settings.

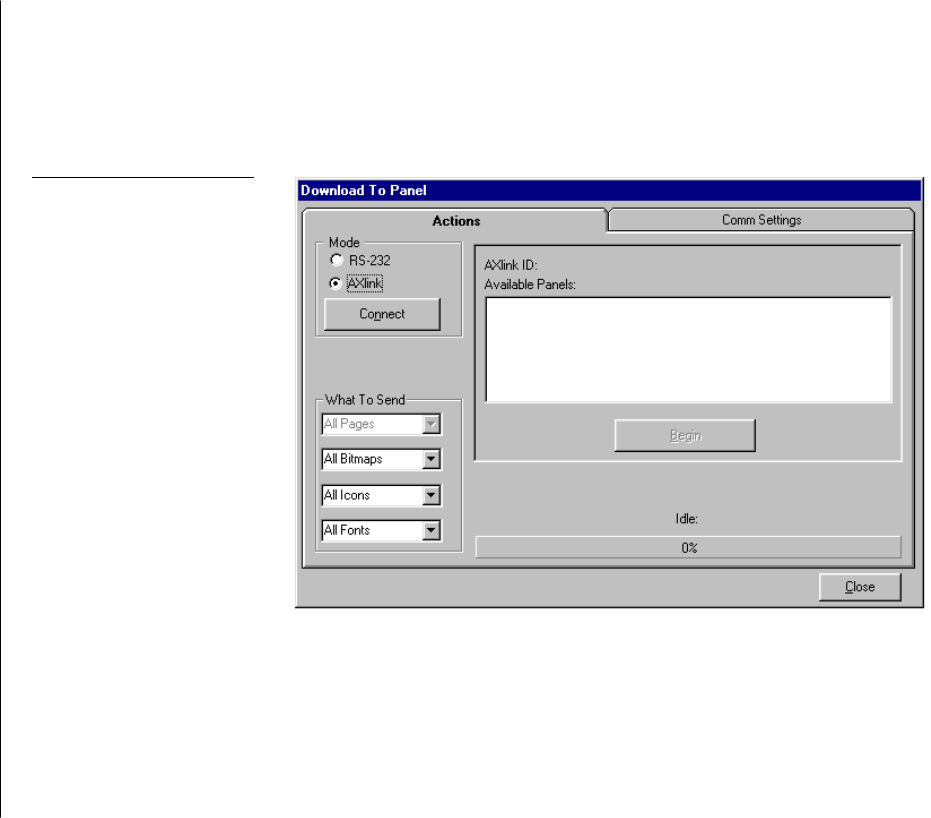

Figure 54
Sample Download To Panel
dialog box: Actions tab
