3. Press TEXT/IMAGE to add text to the button. The TEXT/IMAGE operation bar
shown in Figure 50 appears.
4. Press the button to open the Text/Image page shown in Figure 51.
5. Press BITMAP OFF to set the bitmap for the OFF state of the selected button.
This opens the BITMAPS menu. The BITMAPS menu contains a list of all the
bitmaps currently available to the project. An example BITMAPS menu is shown
in Figure 53.
6. Select a bitmap from the menu. This sets the bitmap for the selected button’s Off
state.
7. On the Text/Image page, press MAKE ON SAME AS OFF to set the bitmap for
both On and Off states of the button.
8. Press EXIT SAVE CHANGE to set the button text and close the Text/Image page
and return to the NEW page.
9. Press EXIT in the Edit bar to exit the Edit Text/Image mode and close the Edit
bar.

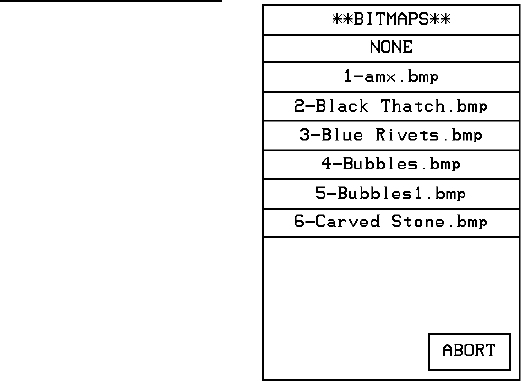

Figure 53
BITMAPS menu example
