ViewPoint Wireless Touch Panels Designing Touch Panel Pages 37
5. Press MAIN PAGE to set the page flip to the Main page.
Setting the button colors for channel-off conditions
1. Press the target button to open the Button Properties page.
2. Press BORDER (Figure 48) in the CHANNEL OFF subsection of the Button Prop-
erties page.
3. The color palette (Figure 49) appears.

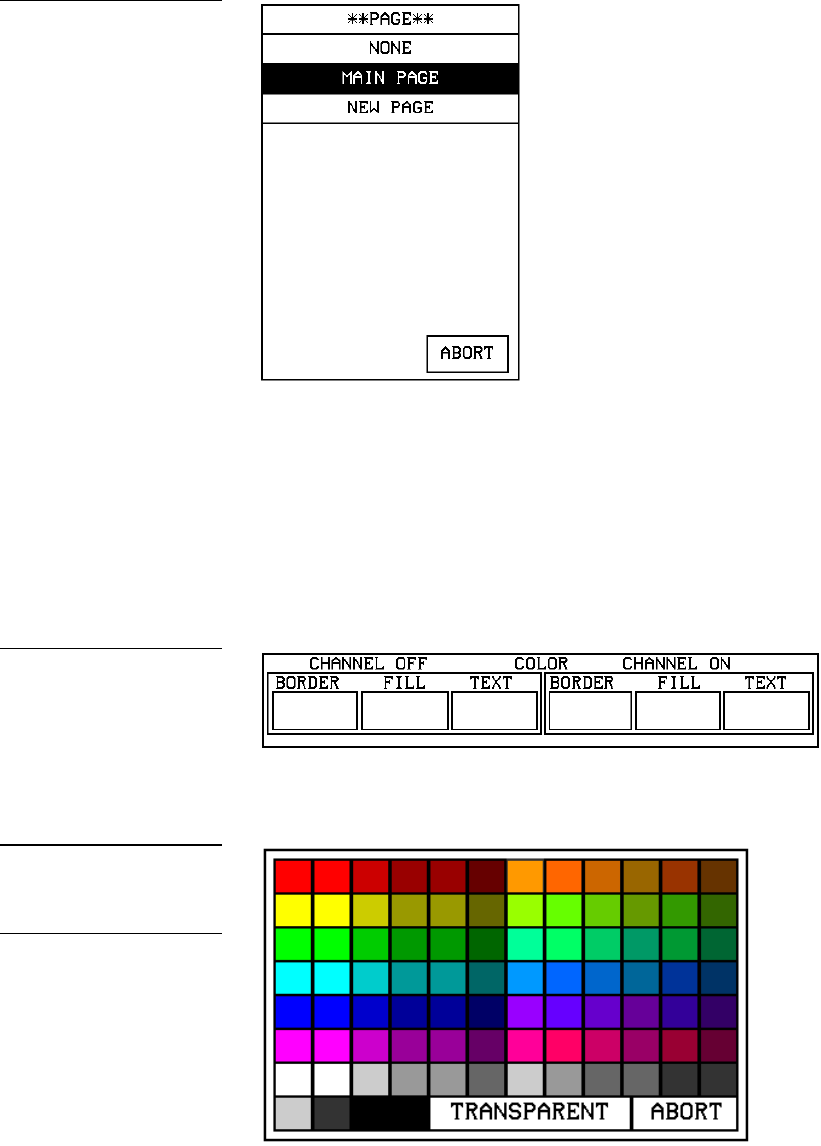

Figure 47
PAGE flip destination menu
Figure 48
CHANNEL OFF/ON COLOR
settings box
Figure 49
Color palette
Note
The VPT-CP and VPT-GS
only display gray shades for
this selection.
