ViewPoint Wireless Touch Panels Designing Touch Panel Pages 33
Setting the button type
1. Press BUTTON TYPE in the Button Properties page. This opens the BUTTON
TYPE menu, shown in Figure 41. Press MORE at the bottom of the first page of
Button Types options to view the next page of options. Press PREV to view the
first page.
2. Select a button type for the selected button to open the associated Button Proper-
ties page for the selected button type. Each button type has its own Button Prop-
erties page with settings specific to the button type. For example, select
GENERAL from the menu to set the selected button as a general button. This
opens the GENERAL Button Properties page, shown in Figure 40.
Setting the button border
1. Press BORDER in the Button Properties page to open the BUTTON BORDER
pages shown in Figure 42. These menu pages appear individually and can all be
viewed using the MORE and PREV buttons.

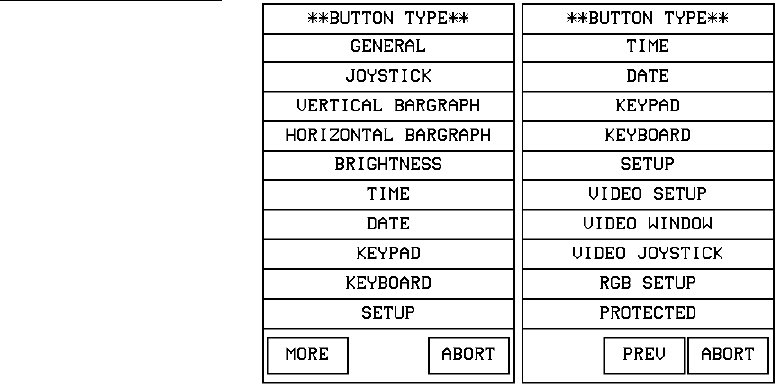

Figure 41
Button Types menu
