30 Designing Touch Panel Pages ViewPoint Wireless Touch Panels
4. Select a page color from the palette. The page automatically changes to the new
color.
Creating a Button
Use the BUTTON menu in the Edit bar to create touch panel buttons.
Adding a button
1. Press EDIT to open the Edit bar.
2. Press BUTTON on the Edit bar to open the BUTTON menu shown in Figure 34.
3. Press ADD to open the ADD BUTTON operation bar (Figure 35).
4. Touch and drag your finger horizontally down the LCD screen to create the but-
ton as shown in Figure 36. The first touch point is the upper-left corner of the
button.

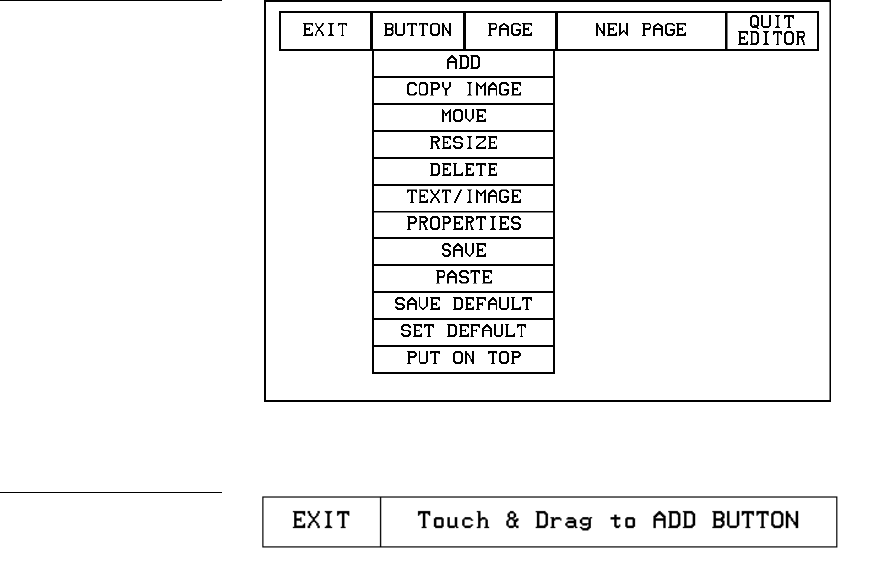

Figure 34
BUTTON menu
Figure 35
ADD BUTTON operation bar
