ViewPoint Wireless Touch Panels Designing Touch Panel Pages 29
4. Press EXIT CHANGE to add NEW PAGE to touch panel memory, close the key-
board, and return to the new page.
Setting the page color
1. Press EDIT to open the Edit bar on the newly created page.
2. Press PAGE on the Edit bar to open the PAGE menu.
3. Press PAGE COLOR to open the color palette shown in Figure 33.

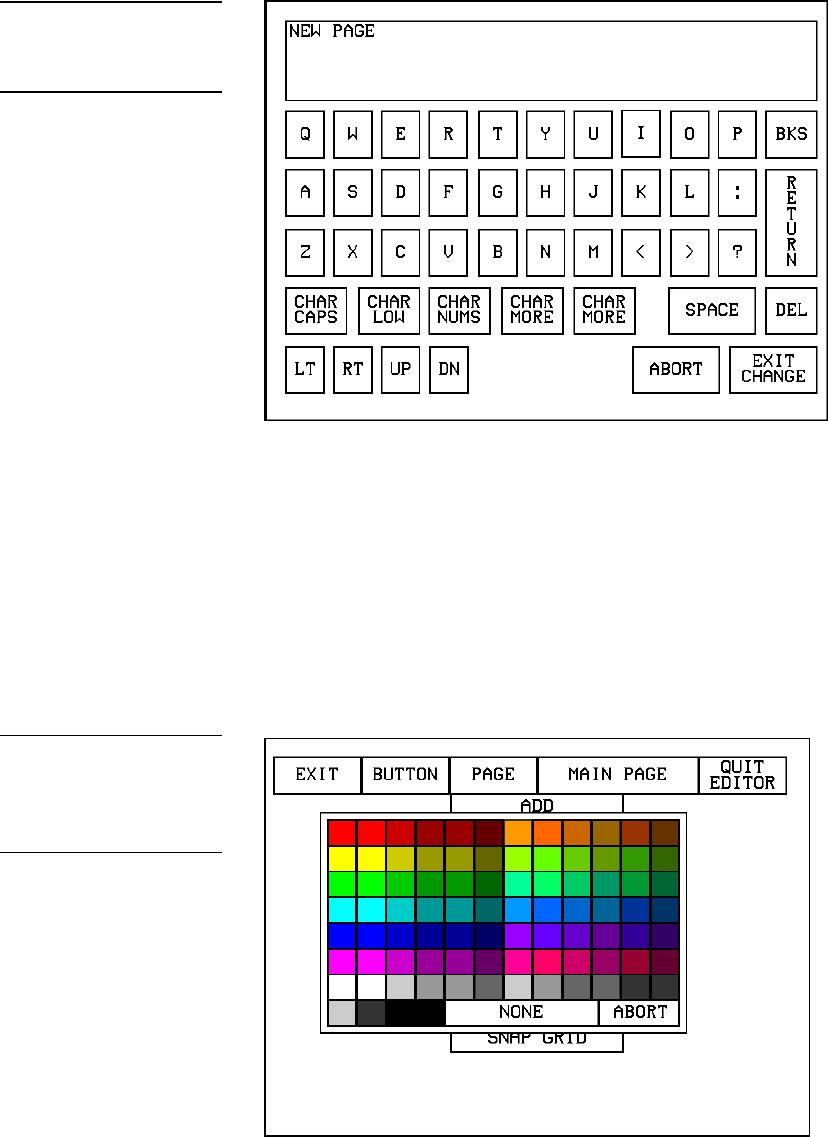

Figure 32
Keyboard
Note
Page naming does not allow
you to change the font type,
as is only available for but-
tons.
Note
The VPT-CP and VPT-GS
only display gray shades for
this selection.
Figure 33
Color palette
