28 Designing Touch Panel Pages ViewPoint Wireless Touch Panels
Creating a Page
Use the PAGE menu in the Edit bar to create touch panel pages.
Adding a page
1. Press PAGE on the Edit bar to open the PAGE menu shown in Figure 31.
2. Press ADD to open the keyboard.
3. Enter NEW PAGE using the keyboard (Figure 32). Page names can be up to 20
characters.

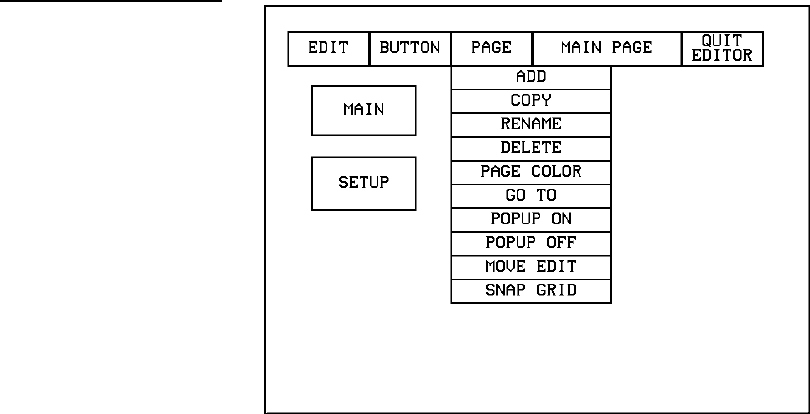

Figure 31
PAGE menu
