Setting the Device Base
Use the DEVICE BASE option in the Protected Setup page (Figure 26) to assign a base
(starting) device address to the touch panel.
1. Press DEVICE BASE (Figure 29) to open the keypad.
2. Enter the base address for the touch panel. The base address range is from 1
through 255. Standard device addresses begin at 128.
3. Press Enter to store the value into the touch panel memory.
Setting the Device Used
Use the DEVICE USED option in the Protected Setup page (Figure 26) to assign a
value for the number of devices being controlled by the touch panel.
1. Press DEVICE USED (Figure 30) to open the keypad and enter the panel’s device
number from 1 through 4. Each device number supports up to 255 programma-
ble channel codes. The multiple device settings allow you to create up to four
unique touch panel buttons and/or pages. This value is used to determine the
current device being used by the panel.
2. Enter the number of devices being used by the touch panel. The device used
range is from 1 through 4.
3. Press Enter to store the value into the touch panel memory.

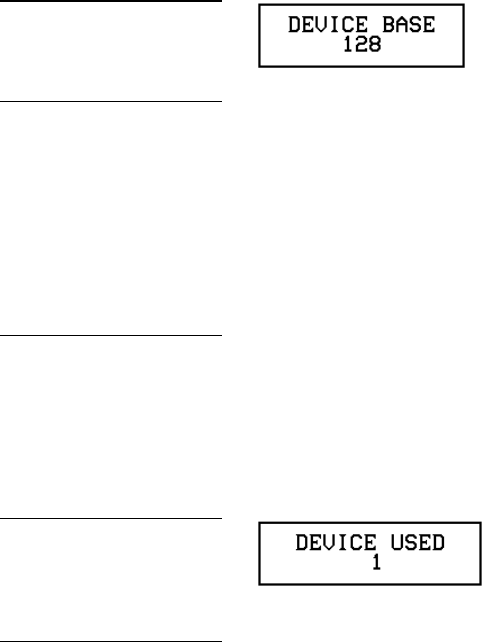

Figure 29
DEVICE BASE button
Note
If four devices are used, and
the base address is 128, then
the AXB-TPI will use device
addresses 128
-
144.
Note
If DEVICE USED is set to 4
and Base Device Number is
128, the Controller recognizes
bus devices 128 -131.
Figure 30
DEVICE USED button
Note
The panel does not allow you
to enter a DEVICE USED
greater than 4.
