ViewPoint Wireless Touch Panels Designing Touch Panel Pages 25
3. Enter 1988 in the keypad and press ENTER to open Protected Setup page
(Figure 26). Refer to the ViewPoint Wireless Touch Panels - Program Reference in-
struction manual for information on changing the password. If you enter a
wrong number, press CLEAR and re-enter the number.
4. Press EDITOR to enable the Edit mode. The EDITOR button is highlighted when
enabled (Figure 26).
5. Press EXIT to close the Protected Setup page and return to the Setup page in the
Edit mode.
6. Press EXIT again to return to the Main page. The EDIT button appears at the top
of the Main page indicating that Edit mode is active (Figure 27).
Note
If you press ENTER after typ-
ing in an incorrect password,
you are immediately returned
to the current page.

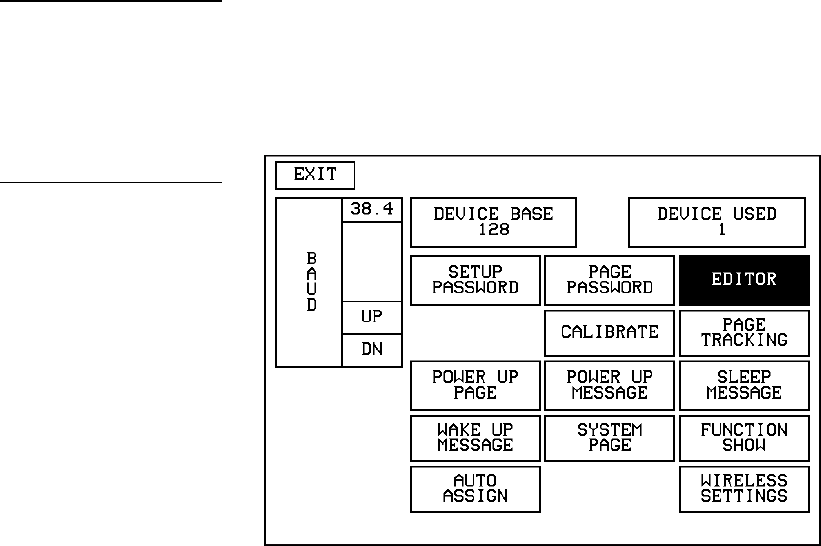

Figure 26
Protected Setup page with the
active EDITOR button
