20 Touch Panel Basics ViewPoint Wireless Touch Panels
Decision buttons
Decision buttons (Figure 19) appear when an operation has two options and requires
you to verify the action before it is performed.
Decision buttons appear when you exit the Editor bar, send or receive a drawing,
designate a communication protocol, or make an operation error.
Status buttons
Status buttons (Figure 20) appear when you try to perform operations that do not
function correctly.
Operation bars
Operation bars (Figure 21) appear in the place of the Editor bar after you have se-
lected a button or page edit operation. The operation bar indicates which edit func-
tion is currently active. When an edit operation is selected, it remains active until you
press EXIT on the operation bar.

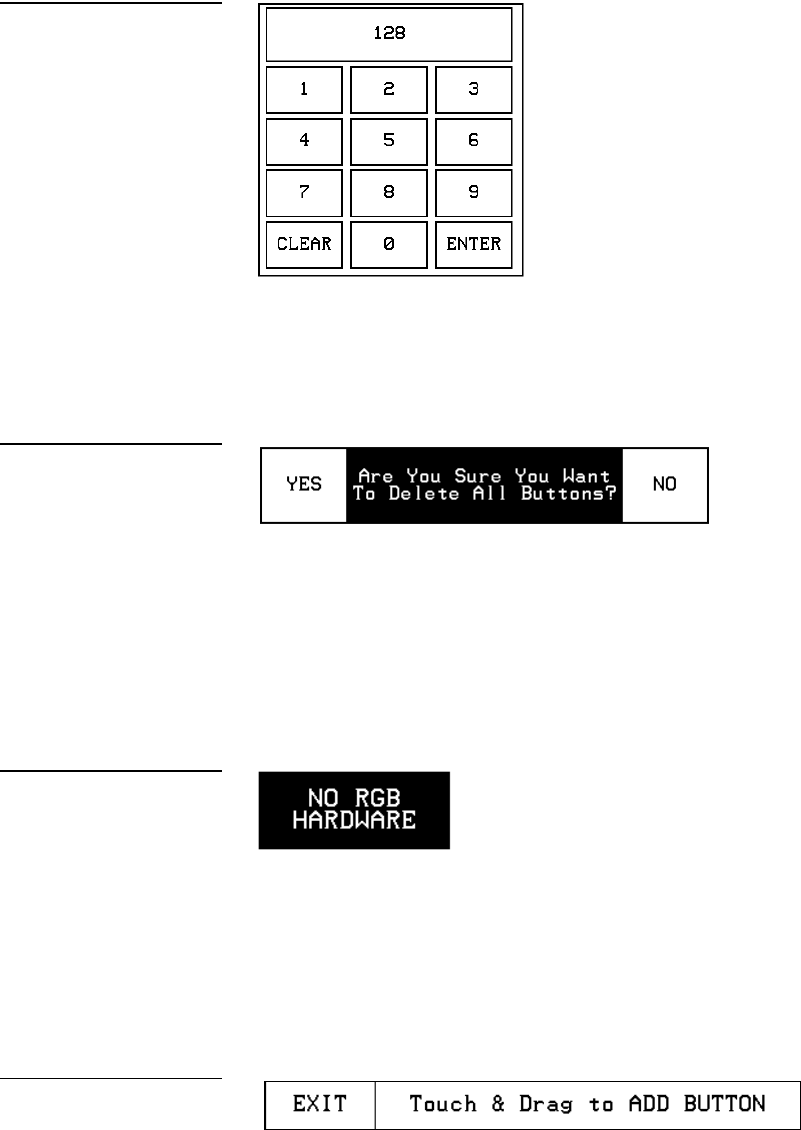

Figure 18
Keypad example
Figure 19
Decision button example
Figure 20
Status button example
Figure 21
Operation bar example
Entry display
Keypad entry (0
-
9)
CLEAR
–
Resets the entry to 0
ENTER
–
Processes the entry
