Status LEDs (Figure 11) are located on the bottom front of the docking station. There
are three LEDs; yellow indicates a ViewPoint connection to the docking station; red
shows a battery being charged in the charging compartment; green indicates that the
battery in the charging compartment is fully charged.
Battery Charging
When a ViewPoint touch panel is not cradled on the docking station, an optional ex-
tra battery can be placed in the charging compartment. The optional battery is fully
charged in four hours when the optional power supply is plugged-in to the rear of
the docking station (Figure 12). The ViewPort Docking Station provides trickle-
charging of the battery inside the ViewPoint when the ViewPoint is cradled in the
ViewPort. To begin charging of the either the extra battery or the rechargeable battery
in the touch panel, connect the power supply to the power supply connector.

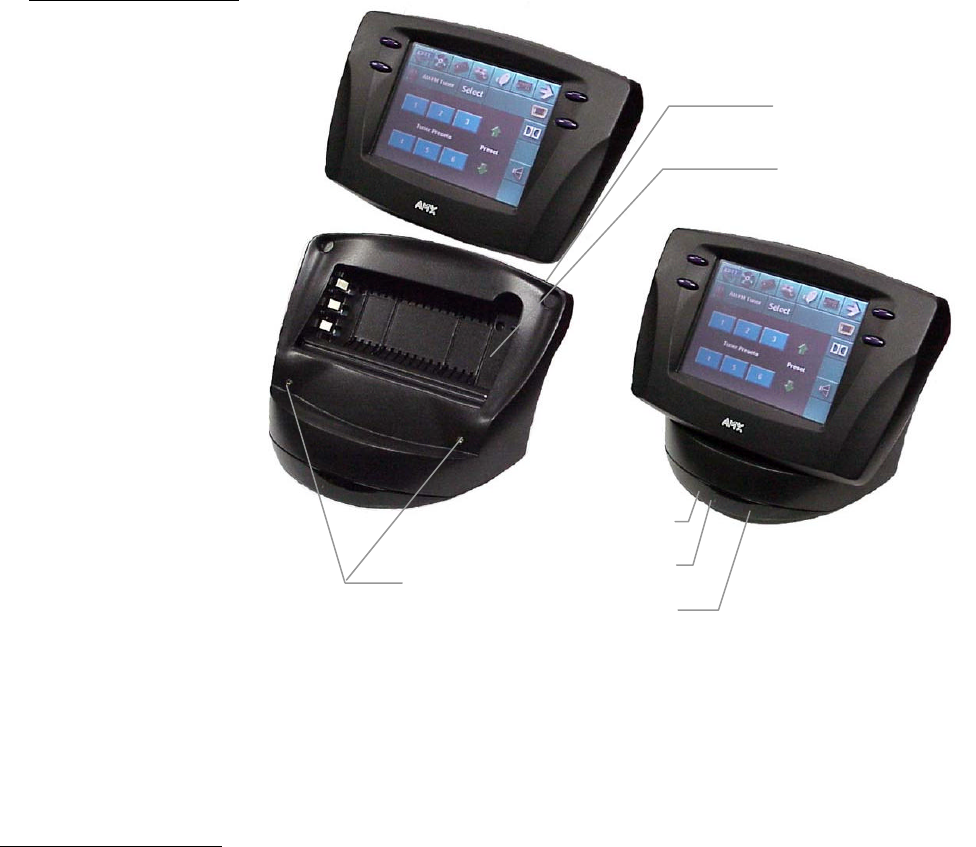

Figure 11
ViewPort Docking Station
Note
When inserting or removing a
battery, insert or remove the
battery slowly to avoid false
indications on the LEDs.
Charging pins
Docking Station
Charging compart-
ment
Green LED
Red LED
Yellow LED
