ViewPoint Wireless Touch Panels Upgrading the Firmware 107
6. Press F4 to program the selected device; a loading message (Figure 116) appears
on the screen
7. Press F5 to refresh the screen. Verify that the selected device has the correct
firmware version. If any devices still appear with an old version of the firmware,
repeat steps 3 through 5 until it appears with the correct version.
8. Press F10 to exit the SOFTROM program.

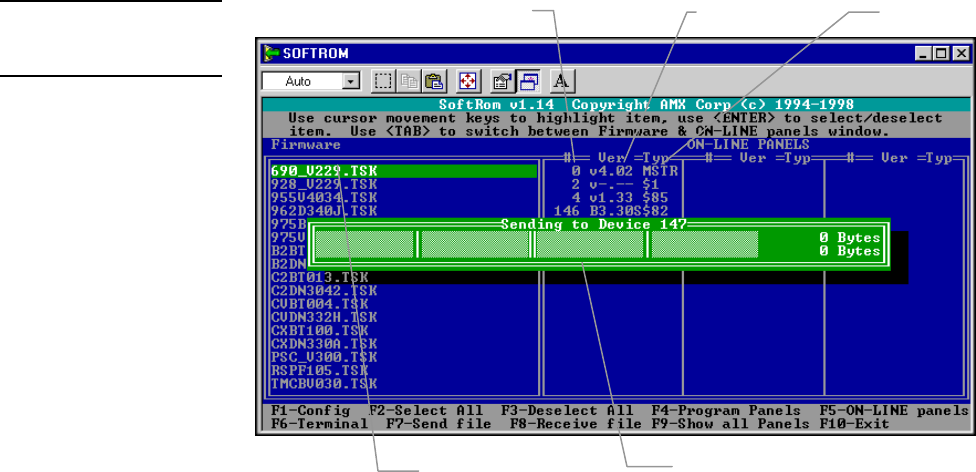

Figure 116
Loading message
Note
Firmware can be downloaded
to multiple device numbers
automatically. If multiple de-
vices are selected, the bottom
half of the loading bar indi-
cates the percentage com-
plete for the selected devices.
Firmware
Device nu
mber
Version number
Type nu
mber
Loading status and device number
