106 Upgrading the Firmware ViewPoint Wireless Touch Panels
Configuration
To configure the communication setting for the SOFTROM program:
1. Press F1 and the screen in Figure 115 appears.
2. Using the up/down arrow keys, select the communications port you are using to
interface with the controller and press ENTER.
3. Using the right arrow key, move to the BAUD RATE column. Then use the
up/down arrow keys to select the interface communications speed.
4. Press ENTER.
5. Press F10 to save the communication settings and to exit the CONFIGURE
screen.
Downloading the Firmware
To download the firmware:
1. Press F5 to acquire the list of online programmable devices.
2. Using the up/down arrow keys, select your firmware versions listed in the
Firmware column of the screen, and press ENTER.
3. Using the Tab key, switch to the ONLINE MASTERS list.
4. Using the up/down arrow keys, select the device to be programmed.
5. PressENTER for each device as it is selected

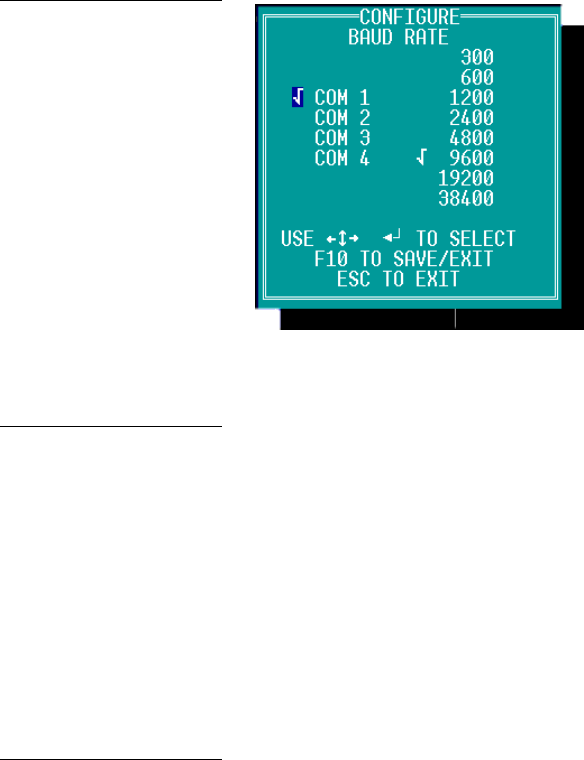

Figure 115
Configuration screen
Note
Make sure that the BAUD
RATE selections match the
setting on the Controller.
Note
You can press F2 to select all
ONLINE programmable de-
vices and F3 to clear all de-
vices.
