ViewPoint Wireless Touch Panels Loading Infrared (IR) Files 103
14. Press ESC on your keyboard (exits the Modify dialog) and press F3 (shows menu
selections for DCU/IRS). Select PROGRAM and press ENTER on your keyboard.
The IR file is downloaded to your touch panel.
IR Memory Check
To verify the amount of memory available for IR files, when using IRLIB:
1. Press F4 and select Memory from the drop-down menu. The dialog in Figure 112
appears.
2. Enter the device number (2, 3, or 4) and press ENTER.
3. The IRLIB program queries the ViewPoint and you then see a memory dialog
similar to Figure 113.

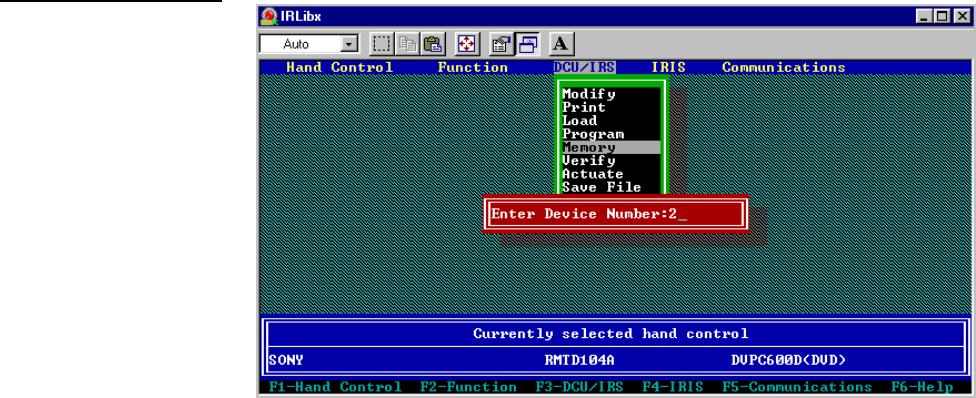

Figure 112
Enter Device Number
