Instruction manual

102 Loading Infrared (IR) Files ViewPoint Wireless Touch Panels
11. Locate the Manufacturer and model in the database and press ENTER on your
keyboard. You then see a dialog that says the computer is loading your IRL file.
12. Once the IR file has loaded into your computer and the loading dialog disap-
pears, press
F3. Click Modify and press ENTER. The Modify dialog appears
(Figure 110).
13. Enter Alt D and then Alt C. You have cleared the DCU Function Description and
have copied the Sony RMT 104A<DVP> IR settings into the DCU Function col-
umn (Figure 111).

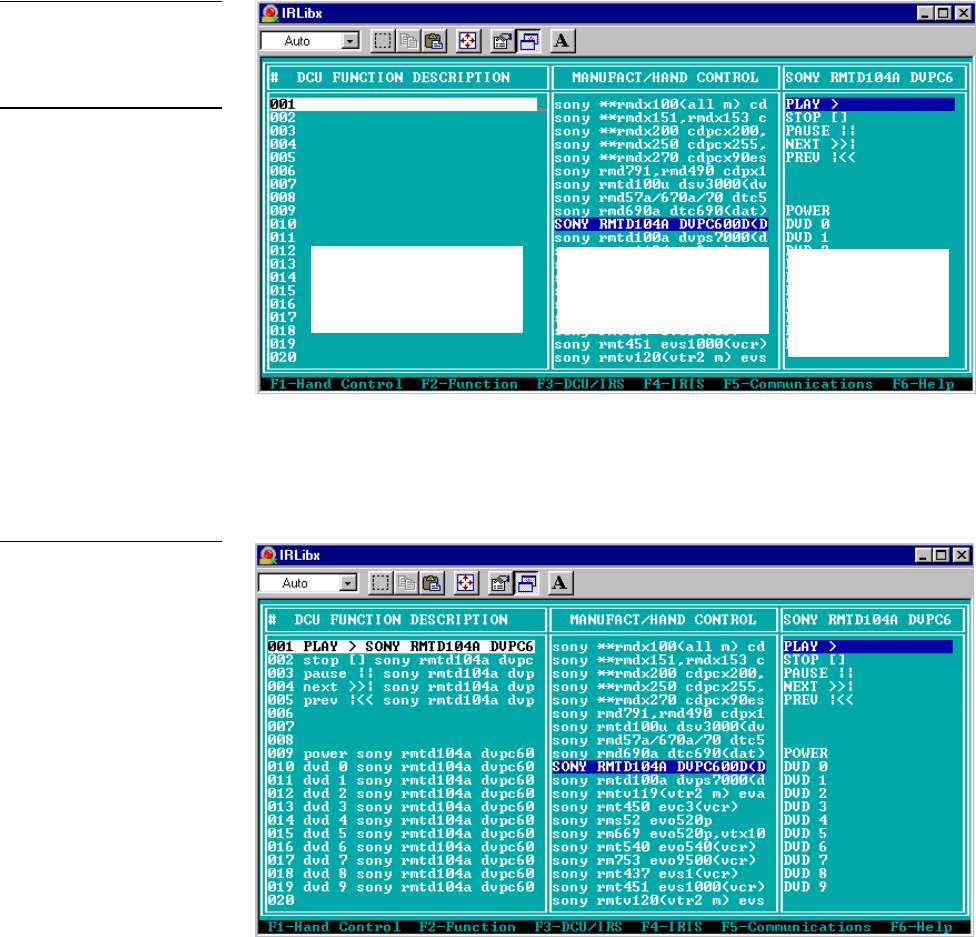

Figure 110
Modify dialog screen
Note
The IR file loading is the file
you identified for your equip-
ment.
Figure 111
IR commands loaded into
DCU
This area is where the
function list will be con-
structed.
The current library of
Hand Control files will be
listed in this area.
Functions of the
currently selected
hand controls will
be listed here.
