AXM-CCS

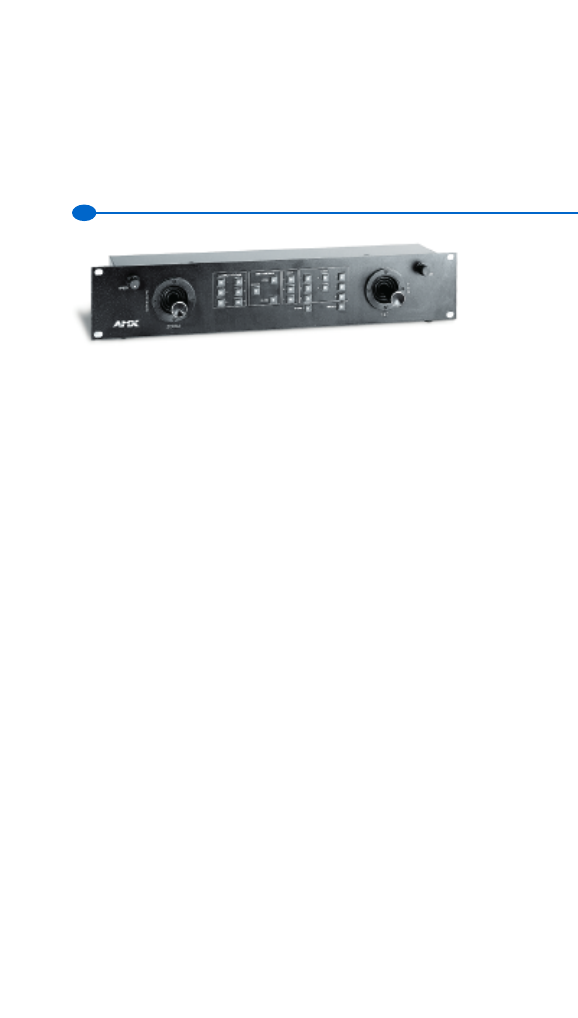

Rack-Mount Softwire Camera Center
FG630-35
The AXP-CCS Rack-Mount Softwire Camera Center combines precision
proportional joystick pan/tilt and lens control with interactive softwire
pushbutton control. Illuminated buttons select up to six cameras with as many
as 24 preset shots per camera. Optional software allows for 18 cameras, eight
preset control. Buttons are also provided for iris open, close and
automatic/manual operation. Dual joysticks provide traditional, responsive
control for pan/tilt heads and lenses. The center-return joysticks deliver
proportional motion and speed control for pan, tilt, zoom and focus.
CONTROL
• Softwire: 22 pushbuttons with LED feedback
CONNECTORS
• AXLink: 4-pin female mini-XLR for AXLink data/power bus
POSITION
• Two proportional joysticks
• Two joystick speed trim potentiometers
INCLUDES
• 4-pin mini-XLR male AXLink connector
DIMENSIONS (HWD): 3.47" x 19.0" x 4.73"
(88.1 mm x 482.6 mm x 121.9 mm)
WEIGHT: 2.43 lbs (1.1 Kg)
POWER: 12 VDC 125 mA
CAMERA CONTROLLERS
