Specifications

CONFIDENTIAL INFORMATION © 2003 AMX Corporation. All rights reserved. AMX and the AMX logo are all trademarks of AMX Corporation.
AMX reserves the right to alter specifications without notice at any time. AMX does not assume responsibility for any errors or omissions.
• Mounts in a wall, lectern, or any flat surface
• Available with a black faceplate
• Available with pushbuttons (MCP/PB) or without pushbuttons (MCP)
LCD
• 5.5" color passive-matrix LCD with a resolution of 320x240 pixels
• Visible area: 5 inches (12.70 cm)
• Screen dimensions (HW): 3.05" x 4.06" (7.75 cm x 10.31 cm)
POWER
• 485 mA @ 12 VDC
MEMORY
• 512KB of SRAM and 2MB of flash for a total of 2.5MB
(2MB available for buttons, icons, bitmaps, and fonts)
DIMENSIONS
• Rack-mount: 5.22" x 19.0" x 2.37" (13.26 cm x 48.26 cm x 6.02 cm)
ENCLOSURES
• 19" (48.3 cm) rack-mount; metal black matte finish (3 rack units
high)
PUSHBUTTONS
• 12 programmable pushbuttons (6 on each side)
REAR CONNECTORS
• AXLink: 4-pin male connector for transfer of data and power to
the AMX Central Controller
COMPATIBILITY
• Axcess and Landmark Control Systems (AXLink is the most common
control standard)
INCLUDED ACCESSORIES
• Low-profile Back Box
• 4-pin female AXLink bus connector
OPTIONAL ACCESSORIES
• PSN2.8 Power supply (can be used on the MCP)
• PSN6.5 Power supply (recommended for use on the MCP)
• External pushbuttons (6 per side)
WEIGHT
• 3.60 lbs (1.60 kg)
CB-MTP
MTP Conduit box
FG027-10
APPLICATIONS
• AXD-MLC and AXD-MLC/PB
• AXD-MCV and AXD-MCV/PB
• AXD-MCP and AXD-MCP/PB
5.5" COLOR PASSIVE TOUCH PANELS
AXM-MCP/PB

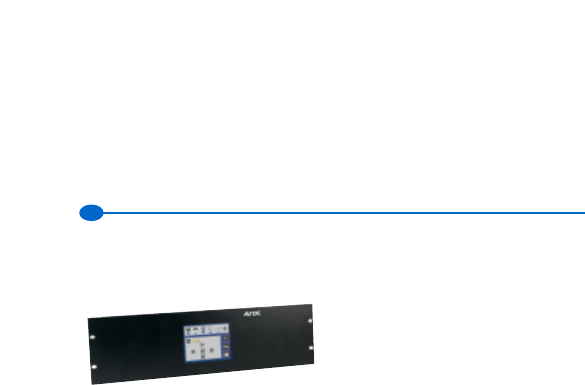

5.5" Rack-Mount Color Touch Panel
with External Pushbuttons
FG925-91 Black
For more information about AMX products and services visit www.amx.com
11-03
