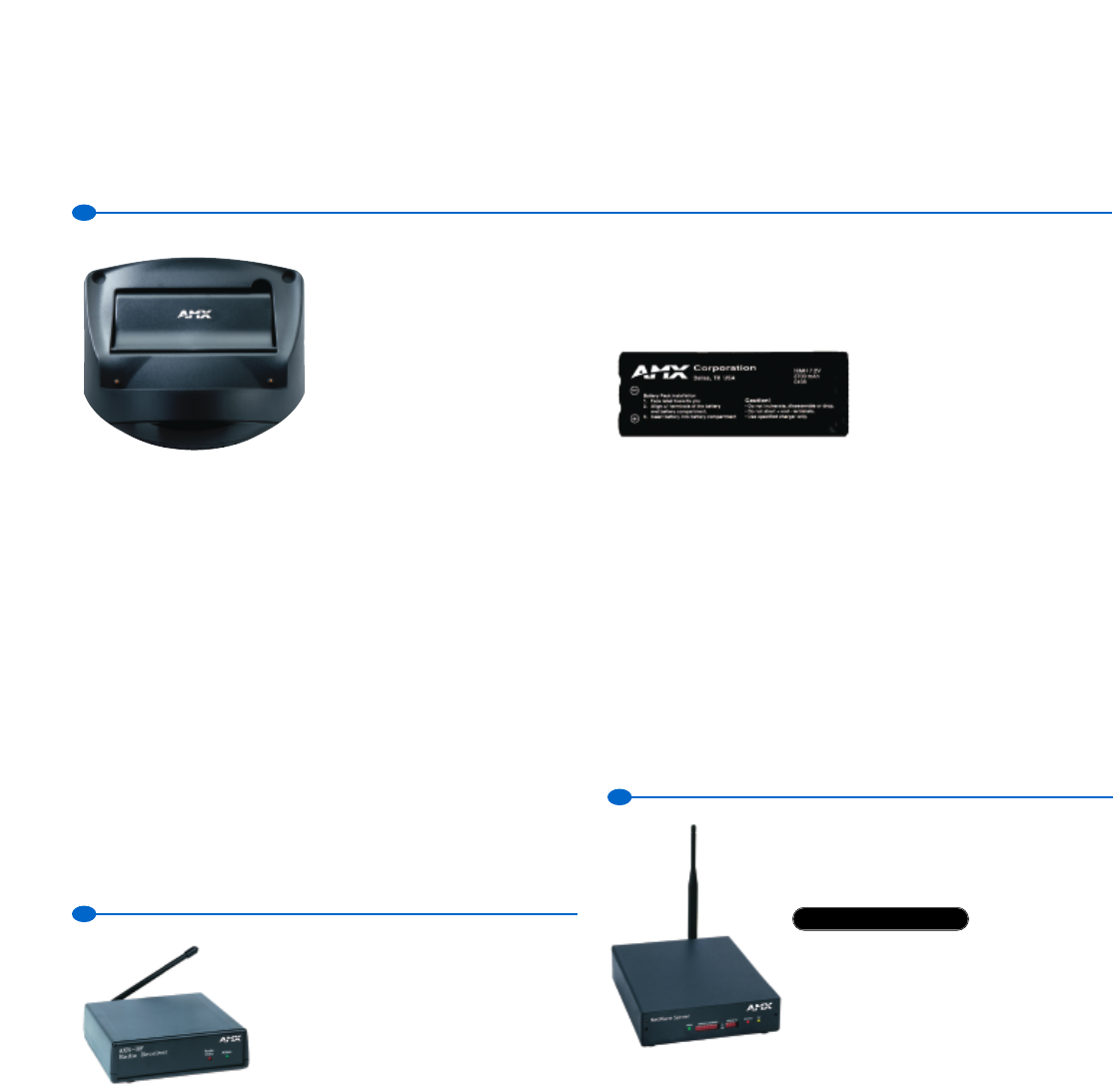

Cradles ViewPoint Touch Panel at perfect angle for Table Top control.
FEATURES
• Charges ViewPoint’s internal battery fully within two hours
• Stores spare VPA-BP battery pack; charges battery when ViewPoint is not present
in cradle
LED INDICATORS
• Red – spare battery is charging
• Yellow – ViewPoint connected to cradle
• Green – spare battery is fully charged
DIMENSIONS (HWD):
• 4.8" x 8.3" x 7.62" (122 mm x 211 mm x 194 mm)
WEIGHT:
• 18.4 oz (522 g)
POWER:
• 1.52 A @12 VDC power supply (not included)
BATTERY:
• 6-cell NiMH (Nickel Metal Hydride) 7.2 VDC, 3.7 Amp hours
BATTERY LIFE:
• Approx. 6 hours full-bright run time (1-way wireless)
DIMENSIONS (HWD):
• 5.3" x 2.0" x 0.7" (136 mm x 51 mm x 18 mm)
WEIGHT:
• 11.7 oz (331.7 g)
OPTIONS:
• VPA-DS ViewPort Docking Station
VIEWPOINT TOUCH PANEL ACCESSORIES
VPA-DS
ViewPort Docking Station
FG5961-02
VPA-BP
ViewPoint Rechargeable
Battery (NiMH
)
FG0962
RF Reception: Super-heterodyne, must specify frequency
RANGE:
• 100-300' range, depending on transmitter
INCLUDES:
• Movable, hinged antenna to allow optimal placement
ENCLOSURE:
• Molded black matte plastic for free-standing use
DIMENSIONS (HWD):
• 1.5" x 5" x 5" (38 mm x 129 mm x 129 mm)
WEIGHT:
• 11.6 oz (330 g)
1-WAY WIRELESS RF AND IR RECEIVERS
AXR-RF
RF Receiver (AXLink)
FG782-304 304 MHz
FG782-310 310 MHz
FG782-315 315 MHz
FG782-418 418 MHz
FG782-433 433 MHz
FEATURES
• Transmits and receives 2-way wireless commands
• Manages up to 16 ViewPoint or other NetWave wireless panels
RF FREQUENCY
• NetWave 2.4 GHz digital spread-spectrum RF, 500-foot range
WIRING
• 4-pin AXLink terminal
DIMENSIONS (HWD):
• 1.5" x 5.5" x 6.5" (38 mm x 140 mm x 165 mm)
WEIGHT:
• 1.4 lbs (0.6 kg)
POWER:
• 12 VDC, 100 mA
2-WAY WIRELESS RECEIVER
AXR-NWS
NetWave Server
(NetWave 2-way 2.4 gHz RF, AXLink)
FG5930-02
*LIMITED AVAILABILITY*
