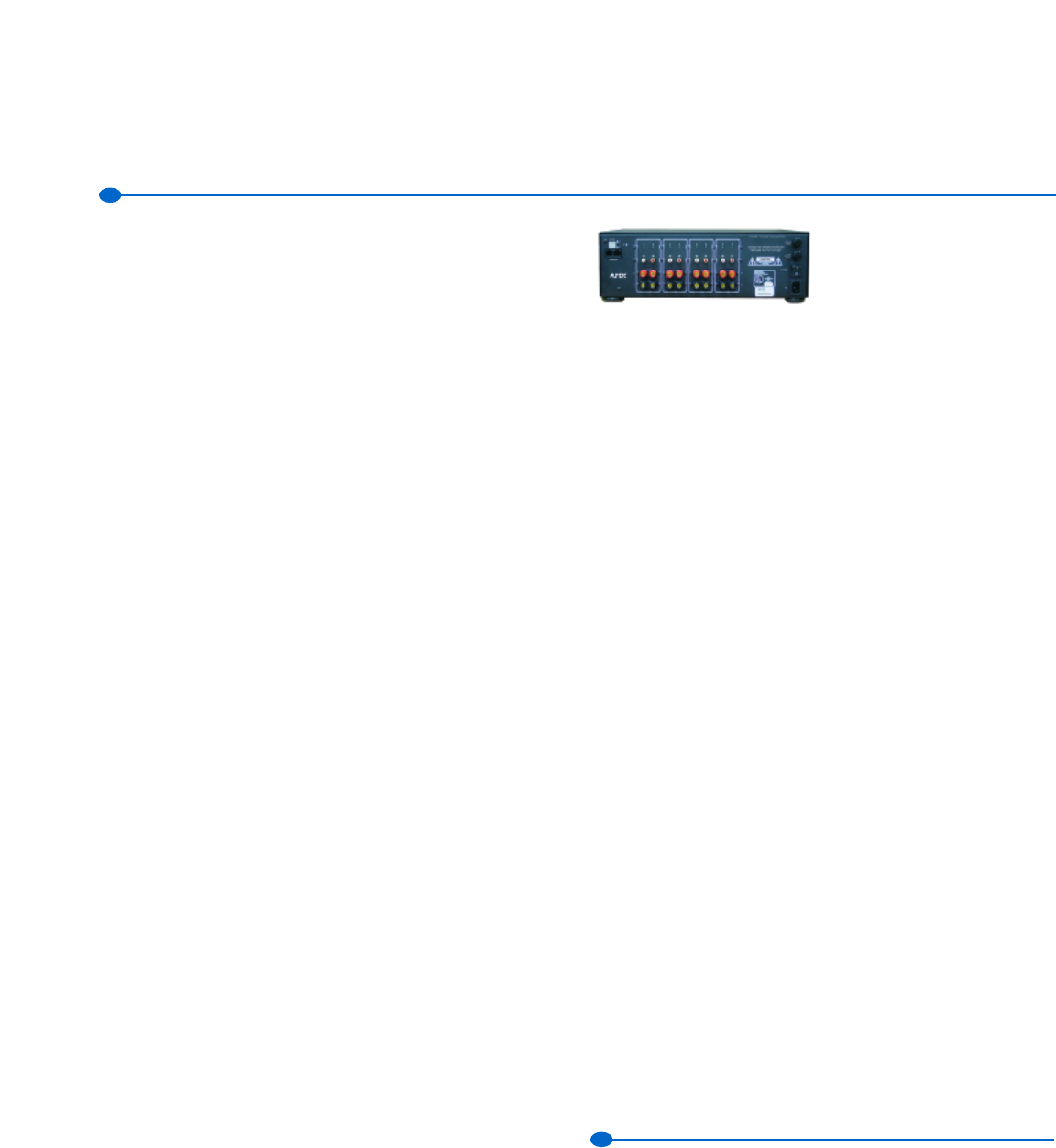

PLB-AMP8
8-Channel Audio Amplifier
FG990
FEATURES
• Provides eight amplified audio channels in four stereo pairs, 63 watts RMS per
channel
• Accepts line-level audio inputs
• Responds to PHASTLink commands for output level and muting
• Displays channel level on rear-panel display
• Channel select and level buttons allow local gain adjustment
• Saves master gain levels in memory to balance outputs or limit gain
• Stable output into four ohms
CHANNELS:
• Eight
LEVEL STEPS:
• 100-step resolution
MANUAL SETUP:
• LED level display, channel select, level buttons
AUDIO 1-8 INPUTS:
• Eight RCA female phono jacks
SPEAKER 1-8 OUTPUTS:
• Eight Terminal speaker binding posts
WIRING:
• Two RJ-45 PHASTLink ports
S/N RATIO:
• > 92db
THD:
• < .03[[%]]
OUTPUT POWER:
• 63 watts RMS per channel (8 ohms)
RESPONSE:
• 20 Hz to 20 kHz
DIMENSIONS (HWD):
• 5.56" x 17.13" x 15.25" (141.2 mm x 435.1 mm x 387.4 mm)
WEIGHT:
• 37.4 lbs (16.96 kg)
POWER:
• 110/120 VAC, 50/60 Hz, 4.2 A
ACCESSORIES
• PM-RAC Rack-Mount Kit, requires 3 rack spaces (5.25")
PLB-AS8
8x8 Stereo Audio Switch
FG991-10
FEATURES
• Routes eight stereo line-level audio inputs to eight stereo line-level outputs
• Distributes any input to any combination of outputs
• Full pre-amp control for volume, balance, mute, loudness, bass, and treble for
each channel
• Senses presence of signal at each input to act as a trigger for system events
• Provides interactive control and feedback with PHAST system
INPUTS
• 16 RCA line-level inputs
OUTPUTS
• 16 RCA line-level outputs
PHASTLINK
• Two RJ-45 PHASTLink ports
DIMENSIONS (HWD):
• 5.56" x 17.13" x 15.25" 3 RU (141.2 mm x 435.7 mm x 387.4 mm)
WEIGHT:
• 16.7 lbs (7.58 kg)
POWER:
• 110/220 VAC, 50/60 Hz, 208 mA
ACCESSORIES
• PM-RAC Rack-Mount Kit, requires 3 rack spaces (5.25")
PLB-AS16
16x16 Stereo Audio Switch
FG992-10 (110V)
FG992-11 (220V)
FEATURES
• Routes 16 stereo line-level audio inputs to 16 stereo line-level outputs
• Distributes any input to any combination of outputs
• Full pre-amp control for volume, balance, mute, loudness, bass, and treble for
each channel
• Senses presence of signal at each input to act as a trigger for system events
• Provides interactive control and feedback with PHAST system
INPUTS
• 32 RCA line-level inputs
OUTPUTS
• 32 RCA line-level outputs
PHASTLINK
• Two RJ-45 PHASTLink ports
DIMENSIONS (HWD):
• 5.56" x 17.13" x 15.25"
(141.2 mm x 435.7 mm x 387.4 mm)
WEIGHT:
• 18.4 lbs (8.3 kg)
POWER:
• 110 or 220 VAC, 50/60 Hz, 204 mA
ACCESSORIES
• PM-RAC Rack-Mount Kit, requires 3 rack spaces (5.25")
LANDMARK BUS BOX CONTROLLER
PMB-TCC
Television Control Center
FG692
Includes cables.
PMB-IRI
Mini IR Input Box
FG0634
Includes cables.
LANDMARK HUB AND AV MATRIX CARDS
