Installation
17
MXD/T-1900L-PAN 19.4" Modero X Series® Panoramic Touch Panels

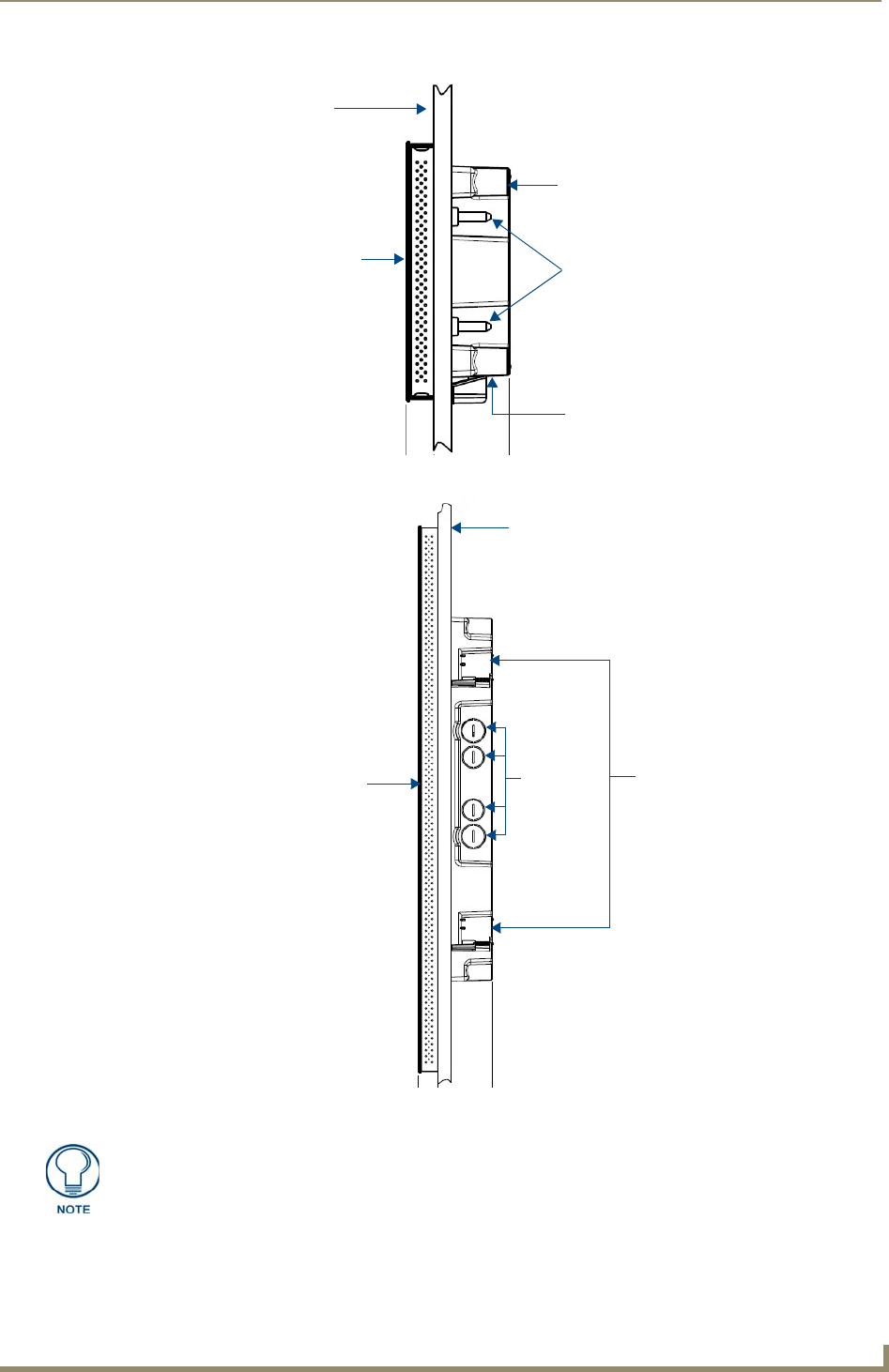

FIG. 15 Side view of installed MXD-1900L-PAN (Landscape)
FIG. 16 Side view of installed MXD-1900L-PAN (Portrait)
Wall
Temporary Mounting Posts
MXD-1900L-PAN
(front)
Back Box
Back box knockouts
Wall
Back box
knockouts
Locking tabs
MXD-1900L-PAN
front)
In order to guarantee a stable installation of the MXD-1900L-PAN, the thickness of
the wall material must be a minimum of .50 inches (1.27cm) and a maximum of .875
inches (2.22cm).
