Setup Pages
75
MVP-8400i Modero Viewpoint Wireless Touch Panels
Refer to the Configuring a Wireless Network Access section on page 21 for further details on
these security options.
Refer to the Using the Site Survey tool section on page 22 for more information on using this
feature.
WPA-PSK Settings
Press the Static WEP button to opens the Static WEP Settings dialog (FIG. 59).
WPA-PSK security is designed for environments where is it desirable to use WPA or WPA2, but an
802.1x authentication server is not available. PSK connections are more secure than WEP and are
simpler to configure since they implement dynamic keys but share a key between the WAP and the panel
(client).
Using WPA-PSK, the encryption on the WAP could either be WPA or WPA2. The firmware in the panel
will automatically connect to the WAP using the correct encryption. The WPA encryption type is
configured on the WAP, not in the firmware.
WAPs do not display “WPA” or “WPA2” on their configuration screens:
WPA is normally displayed as TKIP.
WPA2 is normally displayed as AES CCMP.
The following fields are required: SSID and Password/Pass Phrase.
Enter the SSID of the WAP.
Enter a pass phrase with a minimum of 8 characters and a maximum of 63.
The exact same pass phrase (including capitalization) must be entered in the access point.

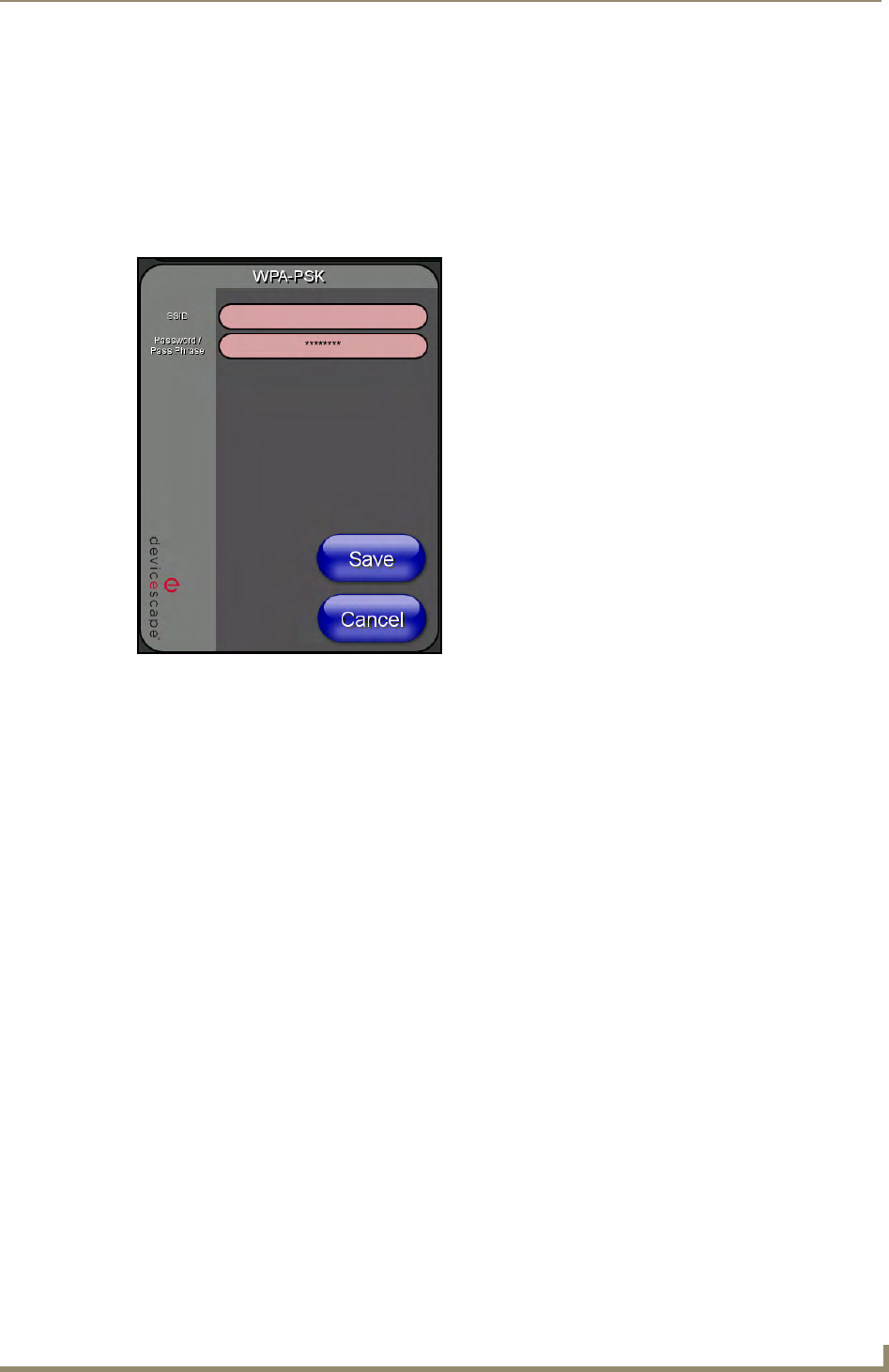

FIG. 59 Wireless Settings page - WPA-PSK Settings
