Setup Pages
65
MVP-8400i Modero Viewpoint Wireless Touch Panels
G4 Web Control Page
An on-board VNC (Virtual Network Computing) server allows the panel to connect to any remote PC
running a VNC client. Once connected, the client can view and control the panel remotely. The options
on this page allow you to enable/disable G4 Web Control functionality(
FIG. 54).

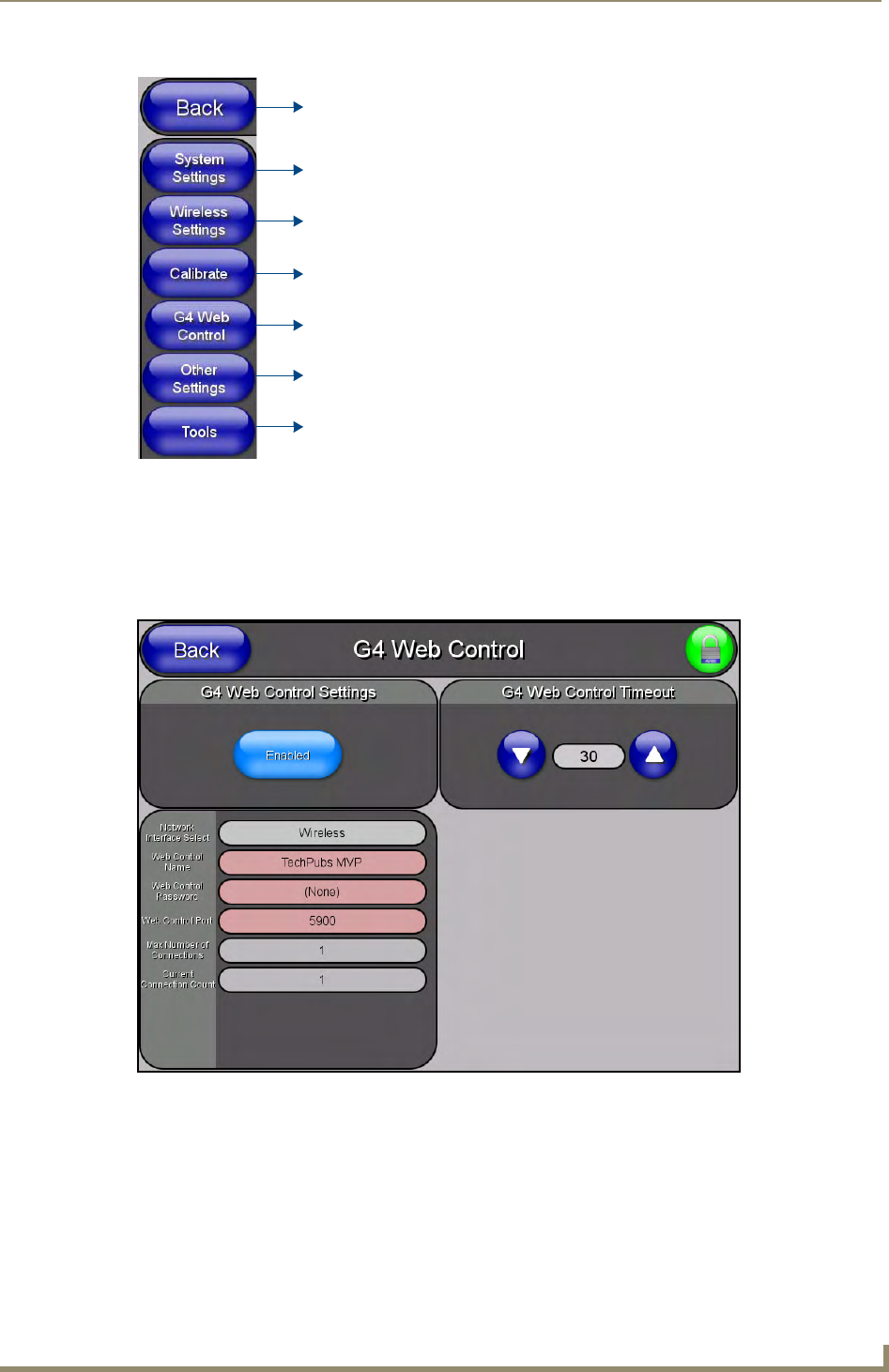

FIG. 53 Protected Setup Navigation Buttons
FIG. 54 G4 Web Control page
Press to access the G4 Web Control page where you can enable or disable remote
Press to access the Tools menu and select Panel Logs, Panel Statistics, or
Press to access the Calibration page where you can calibrate the panel. Press and
Press to access the Wireless Settings page where you can configure wireless
Press to access the System Settings page where you can configure
Closes the Protected Setup page.
display and control of the panel via a web-enabled PC running a VNC client.
Connection Utility.
connection settings.
communication settings for the NetLinx Master and the panel.
Press to access the Other Settings menu, and select Cache, Passwords, or
hold to access the Calibration Test page.
SIP.
