Setup Pages
63
MVP-8400i Modero Viewpoint Wireless Touch Panels
Protected Setup Pages
The Protected Setup page (FIG. 51) provides secured access to advanced panel configuration options,
including communication and security settings.
Enter the factory default password (1988) into the password keypad to access this page.
Features on the Protected Setup page include:

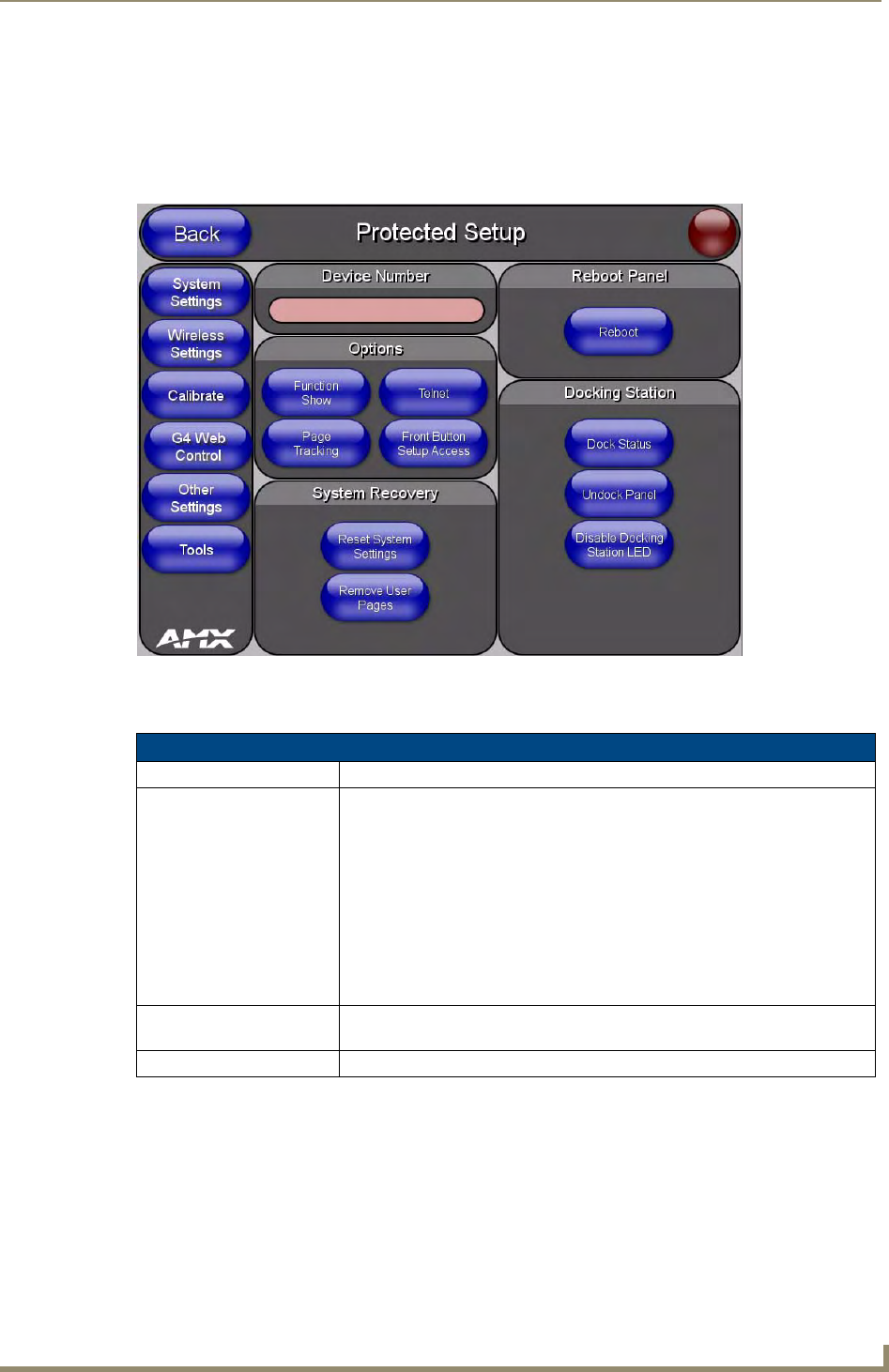

FIG. 51 Protected Setup page showing default values
Protected Setup Page
Back: Saves all changes and returns to the previous page.
Connection Status icon: The icon in the upper-right corner of each Setup page shows online/offline state
of the panel to the master.
• Bright red - disconnected
• Bright green - connected. Blinks when a blink message is received to dark
green every 5 seconds for half a second then go back to bright green.
• Bright yellow - panel missed a blink message from the master. It will remain
yellow for 3 missed blink messages and then turn red. It will return to green
when a blink message is received.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
Navigation Buttons: The buttons along on the left side of the page provide access to secondary Pro-
tected Setup pages (see following sections).
Device Number: Opens a keypad used to view/set the device number of the panel.
