Setup Pages
59
MVP-8400i Modero Viewpoint Wireless Touch Panels
Volume Page
The MVP-8400 provides a Vo lu me page (FIG. 49) with options that allow you to adjust volume levels,
set intercom sound and microphone levels, and set panel sounds.
Features on these pages include:

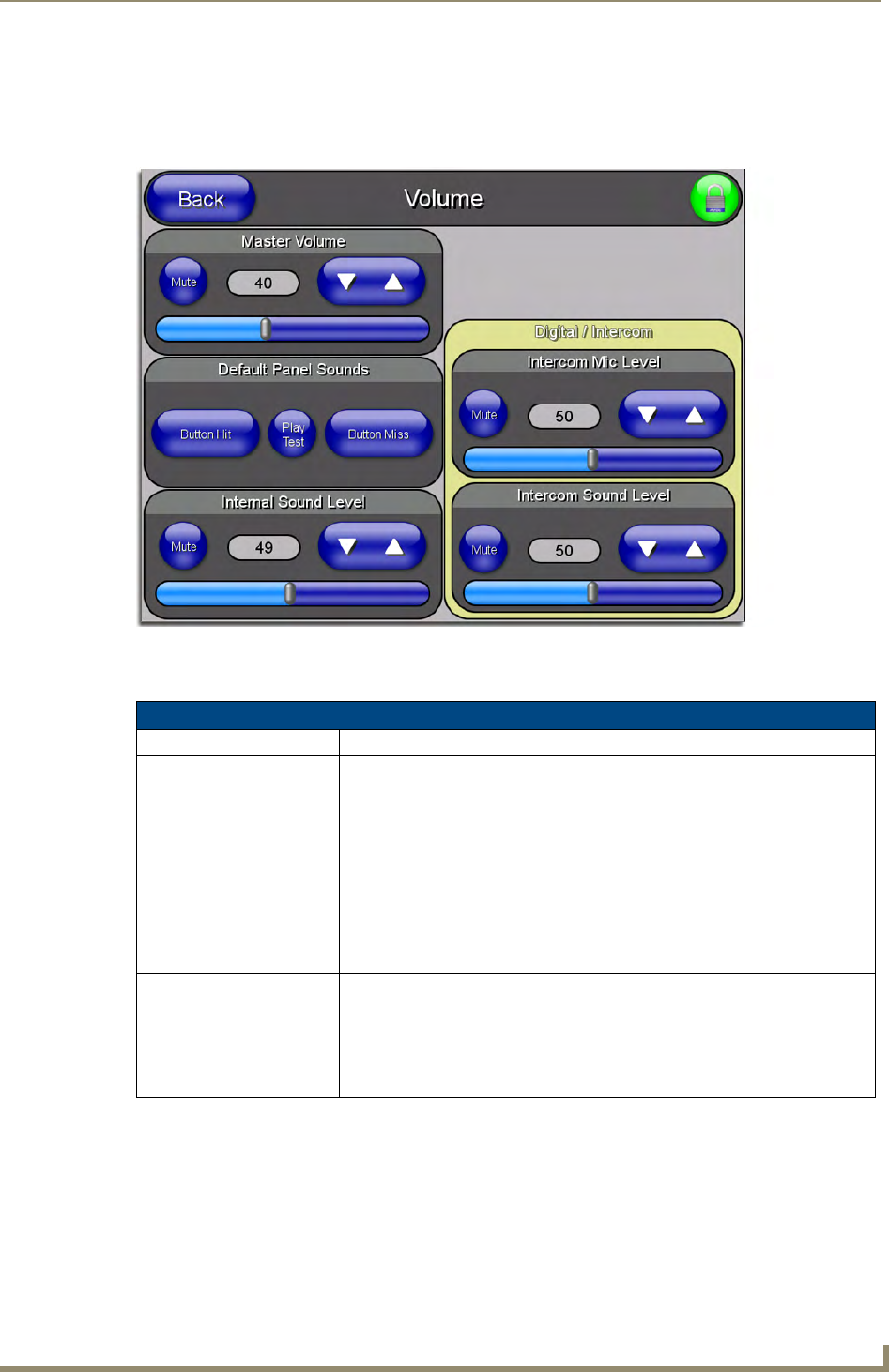

FIG. 49 Audio Adjustments/Volume pages
Volume Page
Back: Saves all changes and returns to the previous page.
Connection Status icon: The icon in the upper-right corner of each Setup page shows online/offline state
of the panel to the master.
• Bright red - disconnected
• Bright green - connected. Blinks when a blink message is received to dark
green every 5 seconds for half a second then go back to bright green.
• Bright yellow - panel missed a blink message from the master. It will remain
yellow for 3 missed blink messages and then turn red. It will return to green
when a blink message is received.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
Master Volume: This section allows you to alter the current master volume level:
• Use the UP/DN buttons to adjust the volume level (range = 0 - 100).
• The Master Volume bargraph indicates the current volume level.
• The Mute button toggles the Mute feature.
Default = 50
