Setup Pages
51
MVP-8400i Modero Viewpoint Wireless Touch Panels
Setup Pages
AMX Modero panels feature on-board Setup pages. Use the options in the Setup pages to access panel
information and make various configuration changes.
To access the Setup pages, press the two lower external pushbuttons on either side of the panel
simultaneously and hold for 3 seconds (
FIG. 42).
Navigation Buttons
The following Navigation buttons (FIG. 43) appear on the left side of the Setup page:

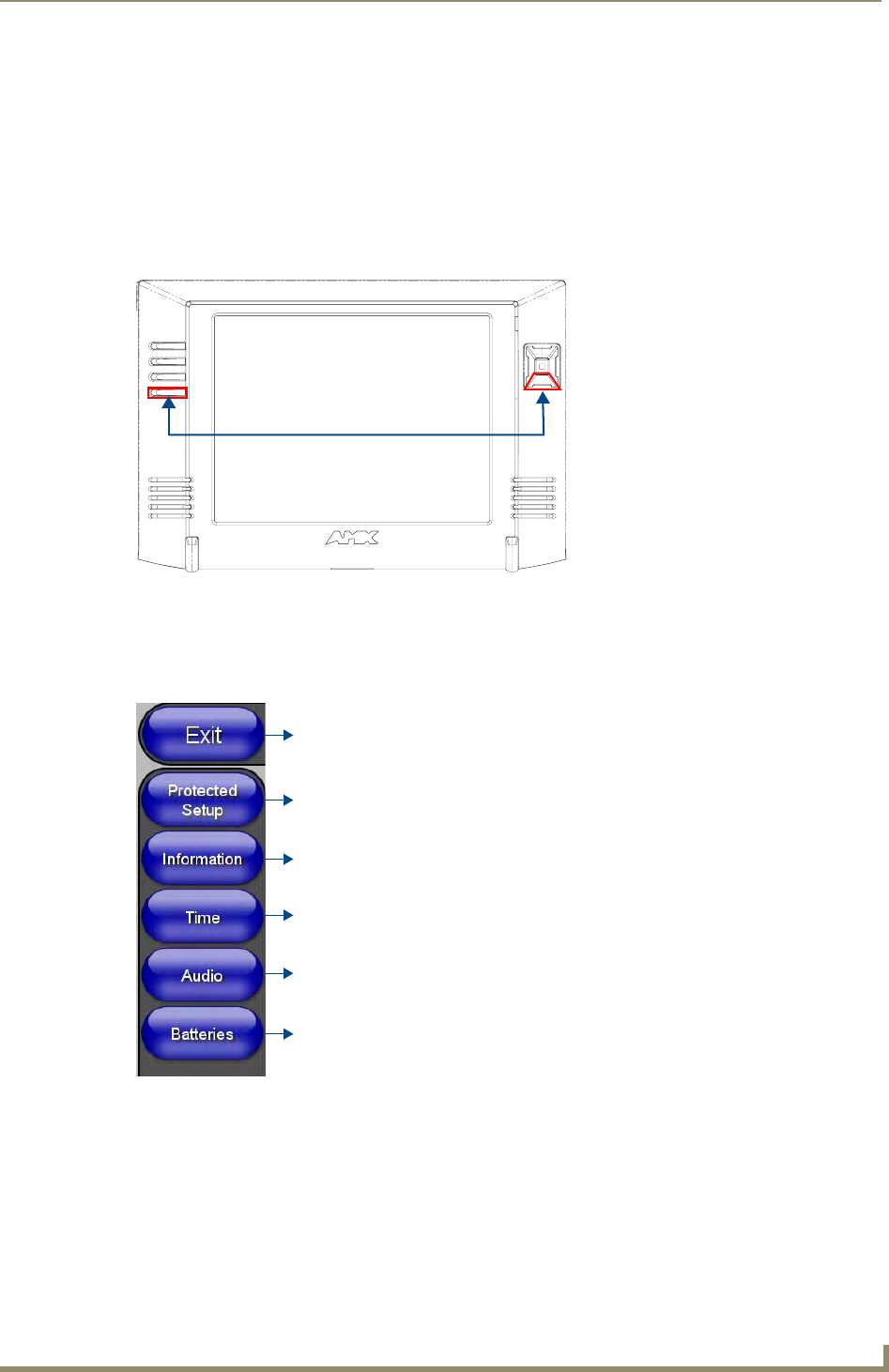

FIG. 42 Setup Page Access buttons
FIG. 43 Setup Page Navigation Buttons
Setup Page Access buttons:
Press and hold simultaneously for
3 seconds to access the Setup pages
Press and hold for 10 seconds
to access the Calibration page.
Press to access the Volume page where you can adjust audio parameters on the
panel.
Press to access the Protected Setup page for panel calibration and to access
security release passwords and connection settings.
Press to access the Information menu and select either Project Information or
Panel Information.
Press to access the access the Batteries page to monitor MVP-BP Power Pack
status in the panel as well as the docking station.
Closes the Setup page
Press to access the Time Adjustment page where you can alter the time and
date settings on the Master.
