Configuring Communications
33
MVP-8400i Modero Viewpoint Wireless Touch Panels
the panel. It also indicates that the AMX USBLAN driver does not contain a Microsoft
®
digital
signature.
8. Click Yes to proceed with the driver installation.
Once the installation is complete, the panel and PC are ready to communicate via USB.
9. Navigate back to the System Settings page.
Configure a Virtual NetLinx Master using NetLinx Studio
A Virtual NetLinx Master (VNM) is used when the target panel is not connected to a physical NetLinx
Master. In this situation, the PC takes on the functions of a Master via a Virtual NetLinx Master. This
connection is made by either using the PC’s Ethernet Address (via TCP/IP using a known PC’s IP
Address as the Master) or using a direct mini-USB connection to communicate directly to the panel.
Before beginning:
1. Verify the panel has been configured to communicate via USB within the System Settings page and
that the USB driver has been properly configured. Refer to the previous section for more
information.
2. In NetLinx Studio, select Settings > Master Communication Settings, from the Main menu to
open the Master Communication Settings dialog (
FIG. 28).

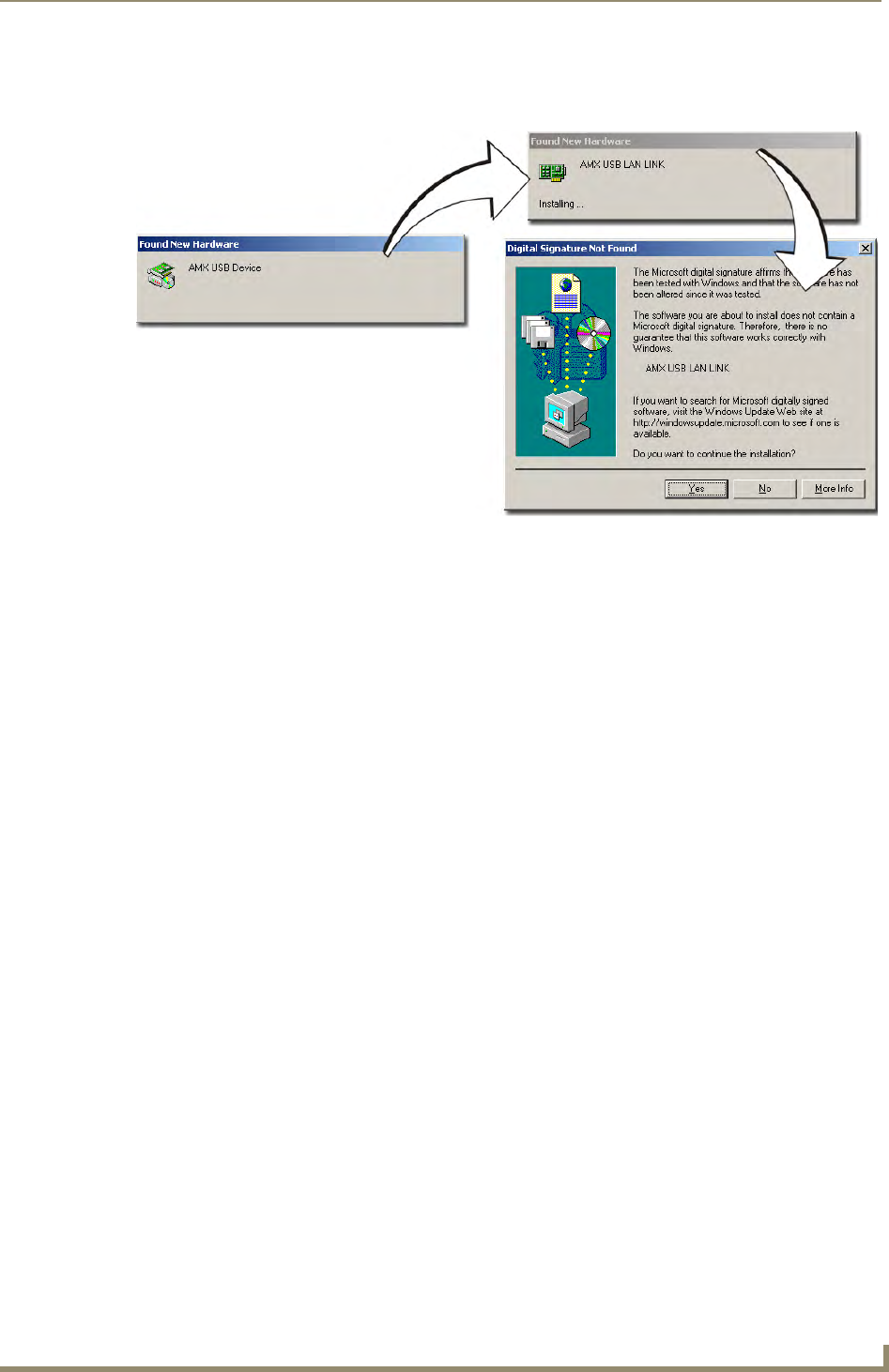

FIG. 27 USB driver installation popup window
